Dew heaters Controler Dewmaster 2 - PEGASUS ASTRO

Equipped with five high-capacity MOSFET transistors, each supporting up to 6 Amps, the DewMaster2 delivers reliable, full-power output to each dew heater.

The MOSFET design ensures stable performance with virtually no voltage drop across outputs, guaranteeing efficient power delivery exactly where it’s needed.

• Automatic Dew Control

PWM control will let you reduce your battery’s power consumption.

DewMaster’s intelligent auto-adjust feature takes the guesswork out of managing heater power levels. Simply assign autodew to your output and the device will consult the environmental sensor to decide when to activate and finely tune each dew heater’s power level as conditions demand.

• Temperature Probe

The DewMaster2 features two temperature probes that can be positioned near your optics for precise monitoring. Each probe can be assigned to a specific output, allowing the device to adjust heater power to maintain your optics just above the ambient temperature.

This slight increase effectively prevents dew formation while preserving image quality, as it avoids generating heat waves that could interfere with your view.

• Easy to use

Just use the buttons and choose the desired output from the display.
Easily adjust the duty cycle from 0% to 100%.

Simple as that!

• WiFi and USB-C controlled

The device provides flexible control through either USB-C or Wi-Fi. Use USB-C for a stable, fast, wired connection, ideal when low latency is needed.
Alternatively, connect via Wi-Fi for a convenient, wireless experience, enabling remote access from smartphones, tablets, or computers.

Appearance

The device is housed in a durable 6061 aircraft-grade aluminum enclosure with a striking blue anodized finish, ensuring both ruggedness and an attractive appearance.

A 2.1 inch 128 x 64-pixel Organic LED (red film) screen is used for the device.

This display works lag-free, at very low temperatures. (-40 deg Celsius)

The red film on top of the display ensures that your night vision is going to be unaffected.

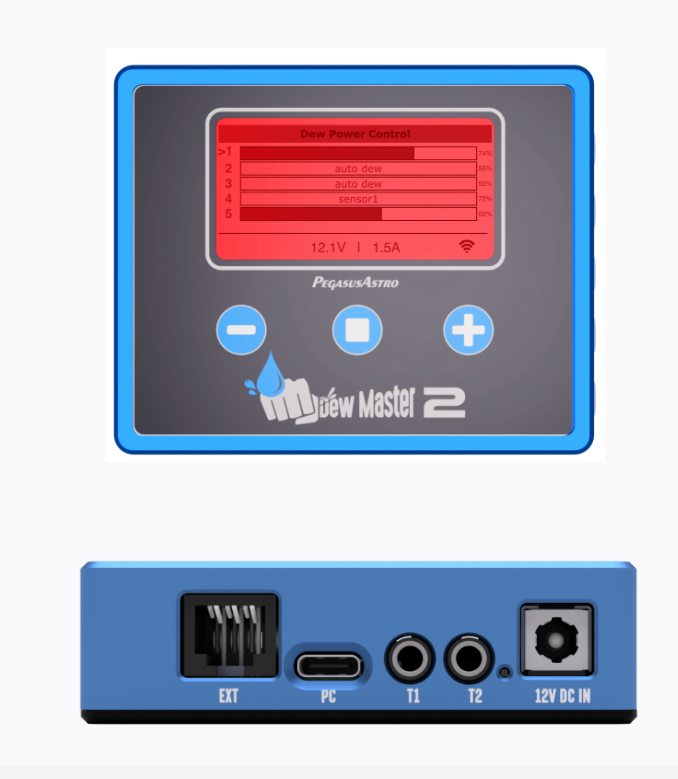

The three-button interface lets you easily configure key settings, adjust heater output power, and quickly fine-tune device options.

From left to right, the device layout includes the environmental sensor socket, a USB-C port for remote control, two temperature sensor probe inputs, a red LED indicator and the DC power input.

External Environment Sensor (included)

A high-resolution, calibrated temperature and relative humidity sensor cable provides precise environmental readings for your setup. This sensor seamlessly integrates with the dew heater outputs, allowing DewMaster2 to automatically adjust power levels based on current conditions (dewpoint).

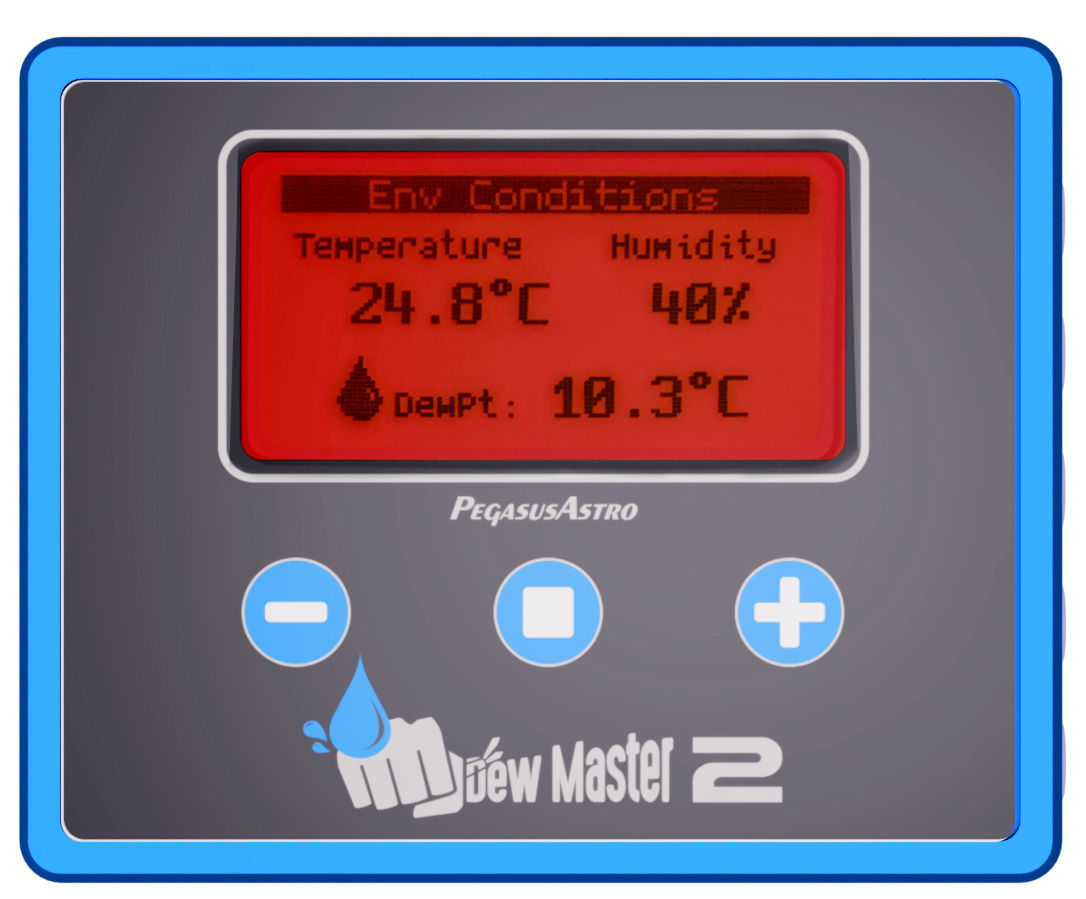

Let DewMaster2 take control, activating your heating elements precisely when needed. Temperature, humidity, and dew point data are also displayed in real-time on the screen for easy monitoring.

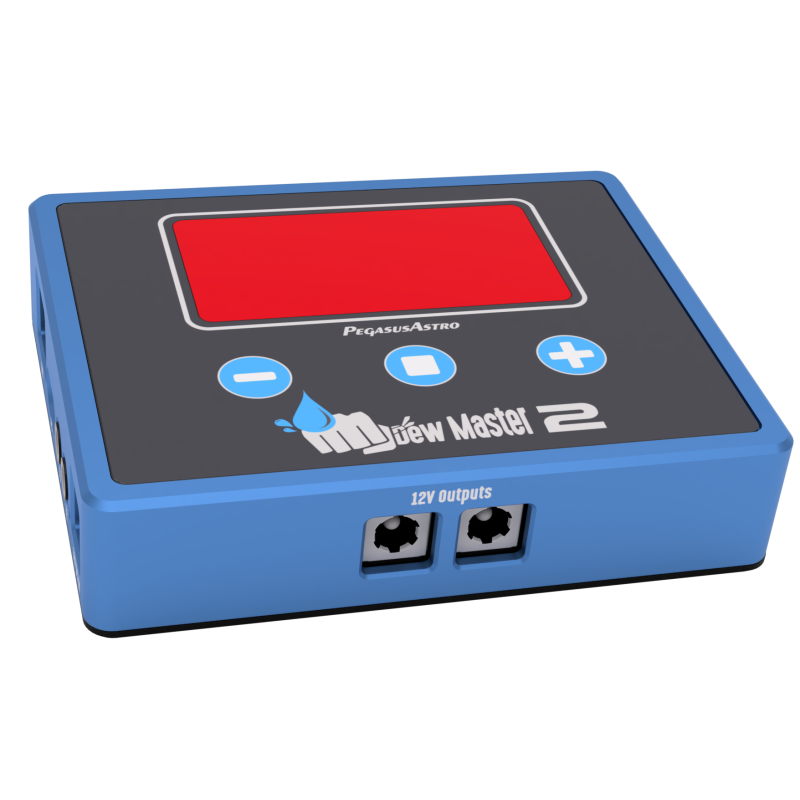

Two 12V pass-through DC outputs and an Power meters.

The DewMaster2 offers two 12V DC outputs, allowing you to power additional equipment while minimizing cable clutter.

An integrated voltage and ampeter provides real-time monitoring of input voltage and total current consumption across the device, including the DC outputs and each dew heater channel.

This gives you clear oversight of power usage for efficient, streamlined management.

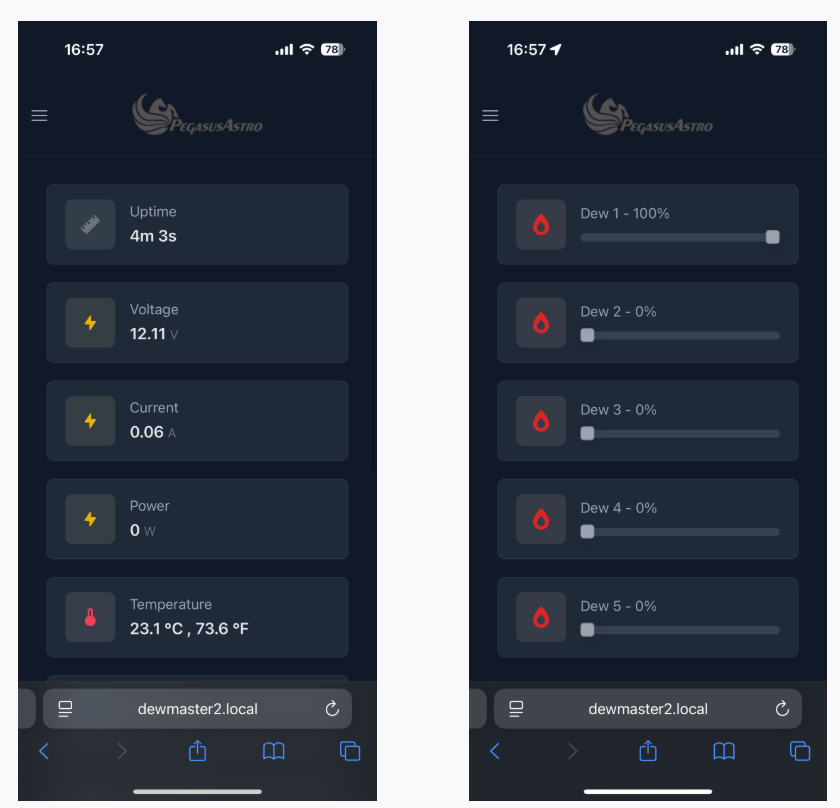

Control via Web Browser

Easily control DewMaster2 by connecting directly to its Wi-Fi hotspot.

Simply connect your mobile phone to the DewMaster2 hotspot, open your preferred web browser, and go to: dewmaster2.local

ASCOM Alpaca & ASCOM 7 Ready

DewMaster2 supports the ASCOM Alpaca Switches driver over Wi-Fi, allowing ASCOM Alpaca-compatible imaging software, such as NINA, to automatically detect the device on your local network.

This enables direct control of the heaters from your imaging software’s dashboard, eliminating the need for additional drivers.

Alternatively, our ASCOM7 drivers allows you to control the device directly from USB-C port.

Features

• Supply Voltage: 12V-13.8V DC Operation
• Output: Same input voltage in Pulse Width Modulation Duty Cycle
• Channels: Five (5)

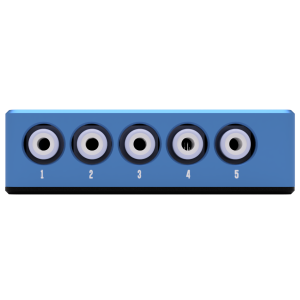

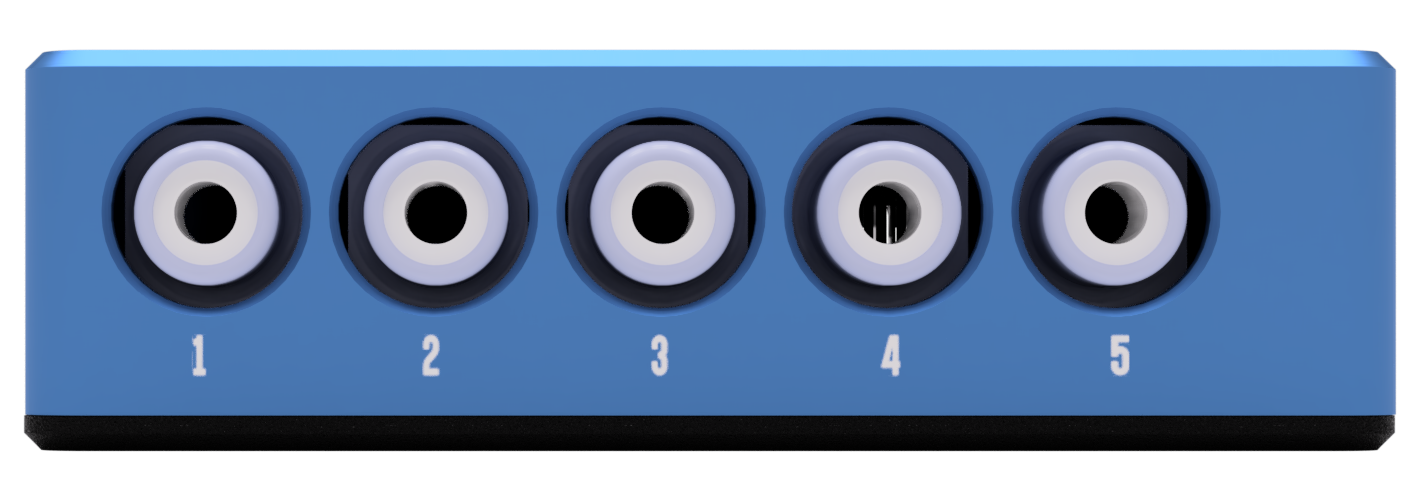

• Power Outlets: 5 x RCA Connectors
• Power Input Connector: 2.1mm Centre Positive Socket (requires optional PEG-PSU-2.1 or CIGLIGHT-ADAPTER21)
• Dimensions: 109mm x 74mm x 25mm
• Weight: 250 grams
• Meters: Ampmeter and Input voltage  meter.
• Temperature Probes: 2 x 3.5mm sockets (probes not included in package)

In the Box

• DewMaster 2 Controller
• Environmental Sensor (Temp and Humidity)
• 2.1 mm to 2.1 mm cable (1 meter length)
