New 5V EAF-N Version

ZWO offers a complete range of accessories for sky imaging and now offers a robust and precise robofocus for automatic or remote control focusing (optional remote control).
Compared to its previous version, the main change to the EAF 5V robofocus is the removal of the 12V power port and, more importantly, its USB-C control.

Note: If you connect the EAF-N with its USB Type-C port to the ASIAIR's Type-C output, you won't have enough power to power it. The ASIAIR's port is only useful for data transmission.

You can now connect it directly to your camera, laptop, or ASIAIR PRO for both data transmission and power supply. This not only facilitates cable management but also effectively reduces power consumption.
The innovative decorative pattern on the EAF is inspired by the changes in the Airy disc during focusing and the focus curve, which clearly shows at a glance how this focuser works.

Deep Sky Imaging

When you're advancing in deep sky imaging and, for example, looking to autofocus, a robofocus is essential. It will allow you to achieve this easily and precisely thanks to its ASCOM compatibility. It can therefore be used with all software on the market that has an autofocus option and is ASCOM-compatible.

Automatic imaging is yours.

Planetary Imaging

For those who do planetary imaging, you probably know that focusing on planets is very difficult due to the intense vibrations when you touch the focuser. That said, focusing with a robofocus will make your task much easier.

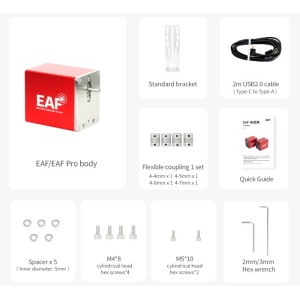

Thanks to its included set of accessories and mounts, it is compatible with a large number of focusers and Crayford telescopes.

Almost the entire TSOptics range is compatible.

Features:

• Highly integrated design
• Supports the ASCOM platform and various ASCOM-compatible third-party software
• Supports INDI
• Supports original software such as ASIAIR and ASIStudio
• Supports autofocus for DSO imaging
• Handheld remote control (optional)
• Temperature sensor (optional)
• USB device
• Stable and durable

Parameters:

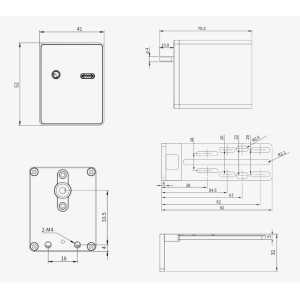

• Size: 41mm x 52mm x 70.3mm
• Motor: Stepper motor, 35mm diameter, 7.5° step angle
• Reduction ratio: 1:128
• Power/data port: USB-C
• Weight: 215g
• Capacity: 5kg

Introduction:

Réglage du Backlash
