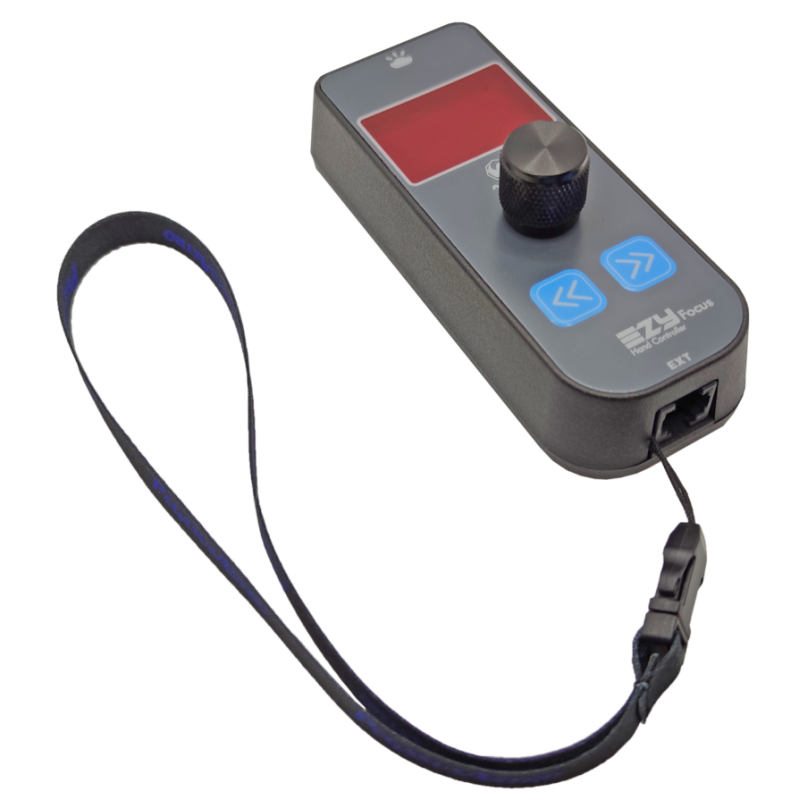

EZY Focus Hand Controller

Experience unparalleled precision with the EZY Focus Hand Controller, designed to deliver exceptional control over your motorized focuser. Say goodbye to vibrations and elevate your focus routine to a new level of smoothness and accuracy!

Compatible with:

• Ultimate Powerbox v2
• Ultimate Powerbox v3
• Prodigy Microfocuser
• FocusCube v3

Digital Encoder with a Push button

The rotary knob simulates the knob of your focuser. Rotate the digital knob and easily focus! Precision can be achieved when you press the knob inside. Speed is reduced to 1:10 just like the fine focus knob of your focuser! Click it again to switch to coarse focus.

Pushbuttons to Focus IN and OUT

Two additional buttons “<< and >>” allows you to move the focuser IN or OUT by the exact and preconfigured step count you have set in the EZY Focus menu. Every time you press the button an audible beep confirms the motor movement.

Can work simultaneously with PC motor operation

Just plug the hand controller in the EXT port of the Ultimate Powerbox v2 or Prodigy Microfocuser and enjoy precision in manual focusing without vibrations. No need to remove the hand controller when you use your PC to control the motor. Both can work in parallel and sync motor position in screen.

Organic LED display with Red Film

A 1.3 inch 128 x 64 pixel Organic LED (red film) screen is used for the device. It will ensure that your night vision will be unaffected.

Display

Large fonts, Legible letters displaying motor position, motor position presets and settings menu

Temperature and Humidity Sensor.

• EZY Focus has an embedded high accuracy temperature and relative humidity sensor. The Ultimate Powerbox v2 automatically uses this sensor discarding the stock UPBv2 sensor.
• EZY Focus and sensor is discovered in the Ultimate Powerbox v2 software and displays readings just like your stock sensor.

Bright adjustable red LED light

A large red colored LED is placed in the front of the device, allowing you to use the “EZY Focus Hand Controller” as an astronomical map red light. LED’s brightness can be configured from the device menu.

In the Box

• 1 x EZY Focus Hand Controller (with detachable lanyard)
• 1 x RJ12 to RJ12 cable (1.5m cable length)

Compatible with

• Ultimate Powerbox v2 and v3
• Prodigy Microfocuser
• FocusCube v3

Compact size

Dimensions: 113mm x 46mm x 25mm , Weight 90 grams
