A must have for successful astrophotography sessions

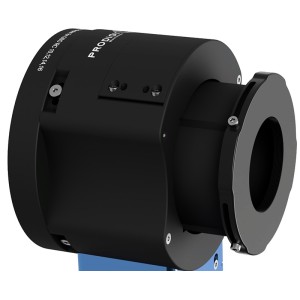

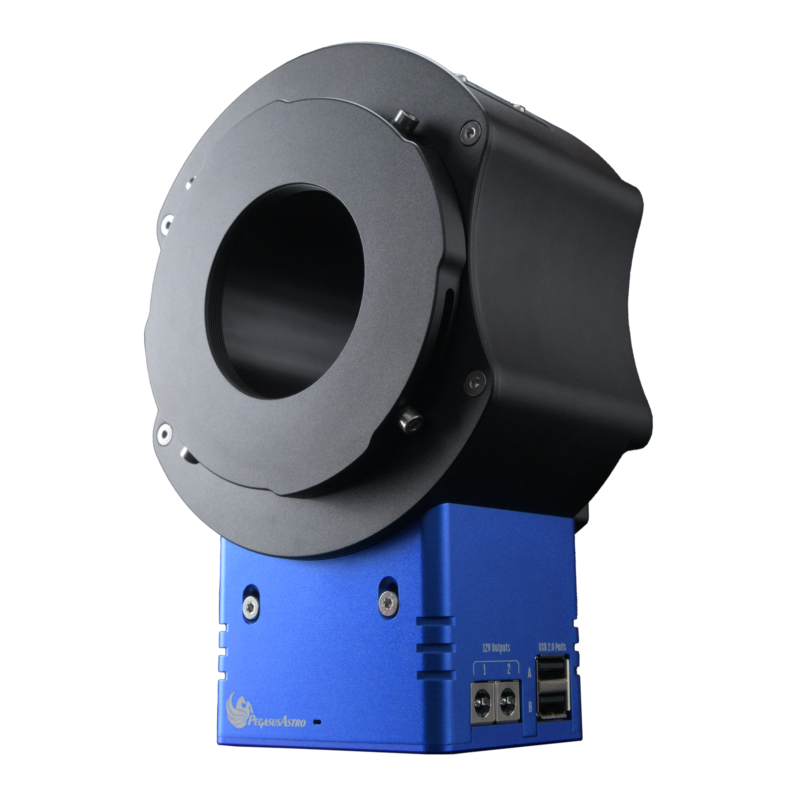

Prodigy Microfocuser is a robust clear 3-inch robotic focuser which allows you to precisely and remotely control the focus of your telescope setup.

Its sturdy mechanical design ensures that Prodigy Microfocuser can lift up to 10Kg of equipment, dead accurate and flexure free. Focuser has a 25mm of draw tube travel and a clear aperture of 76mm / 3”.

The full 3-inch focuser drawtube accepts different types of telescope adapters such as Celestron SCT Edge, GSO RC types and refractor types.

Don't forget to choose your adapter (optional) here:  This page

Zero Backlash

Embedded stepper motor design ensures a smooth, low noise and backlash free operation. V-Curve points during automatic focus procedure are dead accurate.

Clear aperture of 3 inches

Prodigy Microfocuser has a clear aperture of 3 inches or 76mm.
Its drawtube can travel up to 25mm

Adjustable Rotation

Focuser allows adjustable rotation / precise orientation on both sides. This helps you to easily fit the microfocuser to your telescope and also place your camera with the desired orientation.

Supporting Highweight Loads ZERO Flex at up to 10Kg (22lb)

Prodigy Microfocuser is not a Crayford neither a Rack & Pinion type. Its innovative mechanical focus design provides very high load support and accuracy with zero maintenance. Prodigy Microfocuser can easily lift up to 10Kg (22lb) of imaging equipment with zero flex

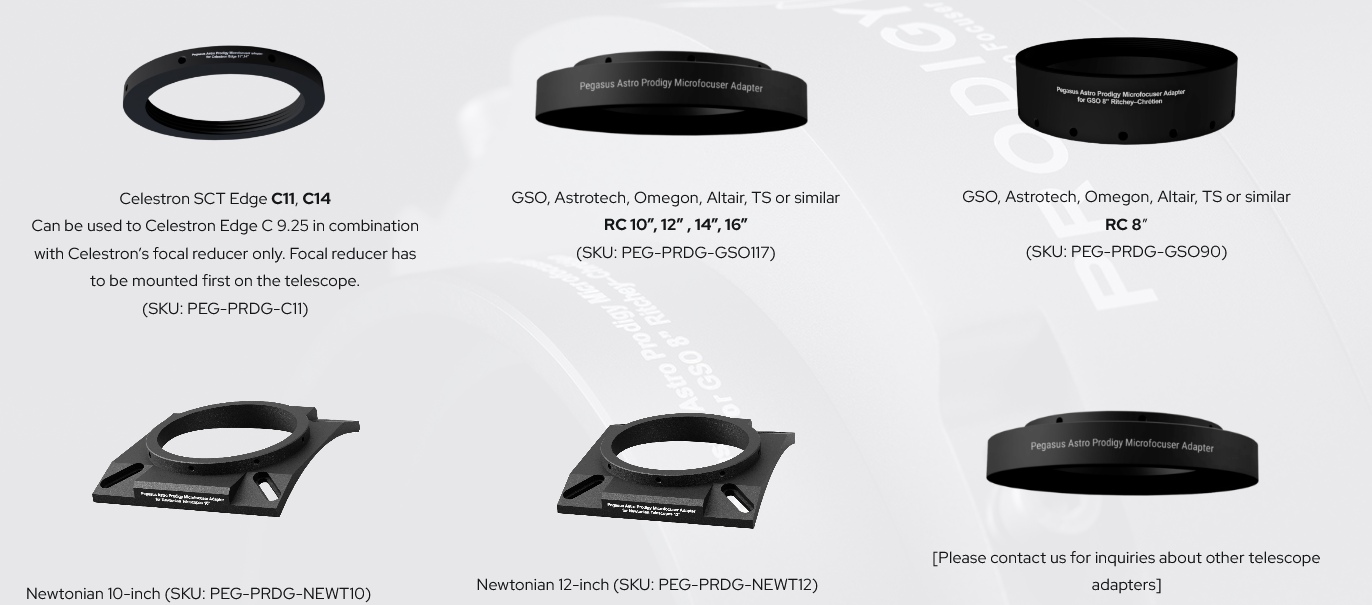

Available Adapters for telescopes

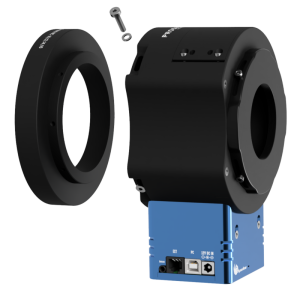

Prodigy Microfocuser can accept different types of telescope adapters. The adapter can be securely mounted and aligned on user’s preference.

Available (optional) adapters for telescope connection are:

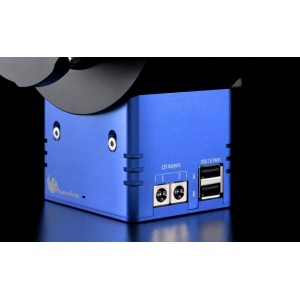

Industrial grade USB Hub and Power Ports

At the side of the Prodigy Microfocuser you can locate:

• Pegasus Astro Prodigy Microfocuser Power + USB output
• 2 x Switchable USB2 ports
• allowing the connectivity of equipment close to your focuser such as a Filter Wheel, a guiding camera, a motorized OAG etc.
• 2 x 12V Switchable Power outputs
• Each output (2.1mm) can output up to 4Amps
• A neat feature to tide up your USB and Power cables.
• Each of these ports, USB or Power, can be switched ON/ OFF via the supplied software.

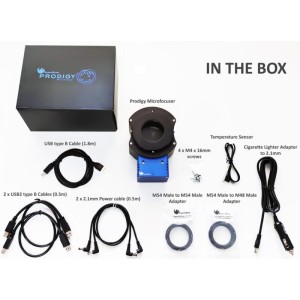

In The Box:

Features:

• Input Power: Voltage (12- 13.8VDC)  / 1.5Amp minimum
• Input Socket: 2.1mm / up to 10Amps (120W)
• Camera Side Mount: Different Adapters Available
• Controller: Embedded in device
• Thickness: 71.7 mm
• Drawtube Travel: 25 mm
• Weight: 1.5 Kg
• Supported Load: 10 Kg
• Clear Apperture: 76 mm
• Stepper Motor: Bipolar Motor with belt reduction
• USB Ports: 2 x USB2 Switchable (ON/OFF) via software
• Power Outputs: 2 x 2.1mm Switchable (ON/OFF via software) – 4Amps each port
• Step Count: 12000 *In Full step drive of motor
