ide-by-side Mounting Plate Losmandy Style for parallel Mounting

doppel3z
TSOptics
Rating

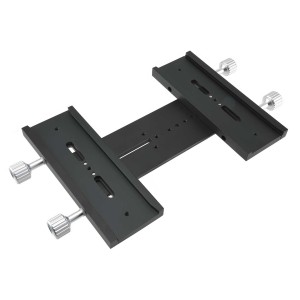

This dual mount from Teleskop-Service allows the installation of two instruments om one mount at the same time.

  •  Suitable for mounts with Losmandy, EQ6, EQ8, ... style quick release
  •  Connections at the telescope side - two Losmandy style saddle plates, suitable for telescopes up to 40 kg

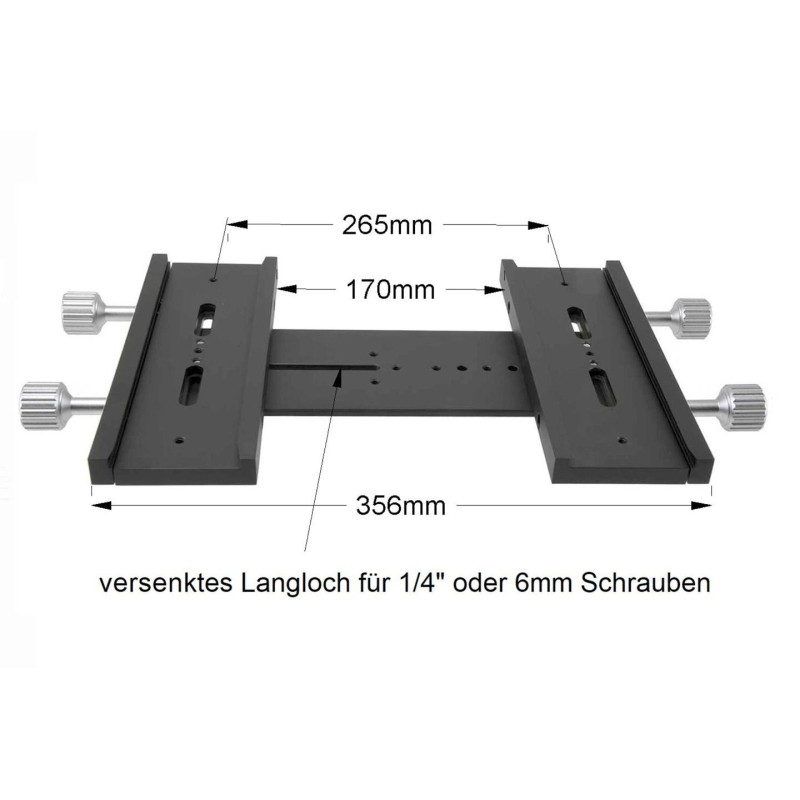

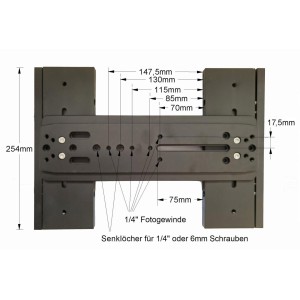

  •  Distance between the saddle plate centers - 260 mm (from optical axis to optical axis), ideal for a bigger main telescope and a smaller guide scope
  •  Weight approx 3.5 kg
€249.00
Tax included
Quantity
Generaly in stock under | 3 to 10 days

  security

100% Secure Payment

  Delivery policy

Express shipping of in-stock parts

  RETURN POLICY

Express shipping of in-stock parts

Description

TS-Optics Side-by-Side Mount Losmandy Style

A side-by-side mount or dual mount is the safest way to attach two telescopes to one mount. It is superior to piggyback mounting, the conventional method where a second telescope is attached to the main telescope. The most important reasons are:

  •  more favourable lever ratios for the mount
  •  more rigid connection (most tube rings are lined with felt, which is not good for rigidity)
  •  higher versatility - you can combine different systems
  •  optimal balance - by shifting the tubes, you can optimally balance the systems

Among others, the Doppel3Z side-by-side mounting plate is suitable for the following mounts:

  •  Losmandy G11, Titan, ...
  •  Skywatcher EQ6, EQ8, ...
  •  Celestron CGEM, CGX, ...
  •  10Micron GM2000, ...
  •  iOptron CEM60, CEM120, ...
  •  All further mounts with Losmandy style saddle plate

Important note:

The saddle plate are adjustable. If a plate is not perpendicular to the dovetail bar, it can be correctly aligned again after loosening two hexagon socket screws. The screws are then tightened again.

Product Details
doppel3z
Reviews

No customer reviews for the moment.

Write your review

ide-by-side Mounting Plate Losmandy Style for parallel Mounting

ide-by-side Mounting Plate Losmandy Style for parallel Mounting

This dual mount from Teleskop-Service allows the installation of two instruments om one mount at the same time.

  •  Suitable for mounts with Losmandy, EQ6, EQ8, ... style quick release
  •  Connections at the telescope side - two Losmandy style saddle plates, suitable for telescopes up to 40 kg
  •  Distance between the saddle plate centers - 260 mm (from optical axis to optical axis), ideal for a bigger main telescope and a smaller guide scope
  •  Weight approx 3.5 kg
