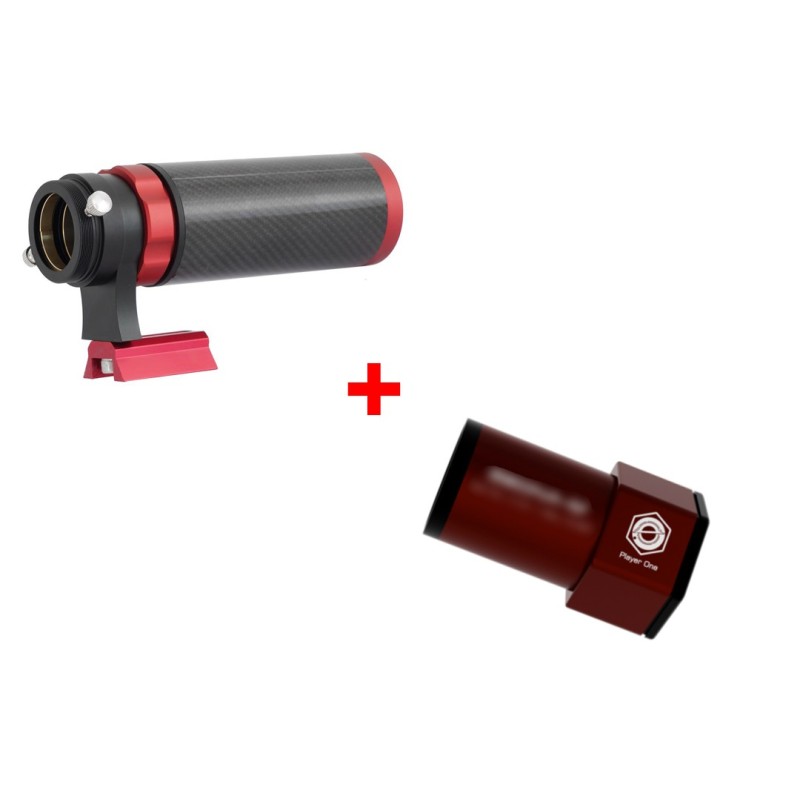

Kit guidage SEDNA-M + Lunette Guide 40mm Triplet F3.3 Carbone
This kit includes the famous SEDNA-M camera from player one full description here: Clic here
Caractéristics
- Sensor: SONY IMX178 1/1.8" CMOS (mono)
- Diagonal: 9mm
- Total Pixels: 6.4 Mega Pixels
- Max Resolution: 3096×2078
- Pixel Size: 2.4μm
- Chip Size: 7.4mm×5.0mm
- Frame Rate: 60FPS(10bit)
- Exposure Range: 32μs-2000s
- Shutter: Rolling Shutter
- Bayer: RGGB
- Readout Noise: 2.2e~1.3e
- QE Peak: ≈80%
- Full Well: 15k e
- ADC: 14 bit
- Data Port: USB3.0/USB2.0
- Adapter: 1.25″ / M42X0.75
- Back Focal Length: 12.5mm
- Protective Window: D32*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating
- Diameter: 40mm
- Weight: 65g
- Resolution and FPS:
Under USB3.0 mode
Resolution 10bit ADC
3096×2078 60 FPS
More resolution options could be setup in capture softewares!
With Guidescope 40mm F3.3 Triplet ED Scope
This small 40mm guide scope is light thanks to its Carbon body and has a TRIPLET ED lens for sharp stars.
Its slightly larger diameter than the classic 30mm Mini Guide offers better resolution and will allow you to use cameras with smaller pixels for more precise guidance.
Depending on your main camera, even with its focal length of only 132mm, you will be able to guide tubes up to 1000 focal length to properly select your guiding camera.
This scope has a T2 thread (M24x0.75) allowing you to directly screw any camera to this standard as well as a 1"25 thread for small cameras (the focal point is 20mm behind the T2 thread without the 1"25 or 10mm adapter behind the T2 thread when the adapter is installed)
This small scope comes with its small mini vixen type dovetail which attaches to all classic finder holders.
Features
- Lens: TRIPLET ED
- Tube: Carbon
- Diameter: 40mm
- Focal length: 132 mm
- F/D: 3.3
- weight: 470g
- Connection: 1"25 and T2 (M42x0.75)
- Focal point :
10mm behind T2 thread when 1"25 adapter is installed
20mm behind T2 thread when 1"25 adapter is removed
- Ideal for small pixel cameras
- Focus helicoidal: 15mm
