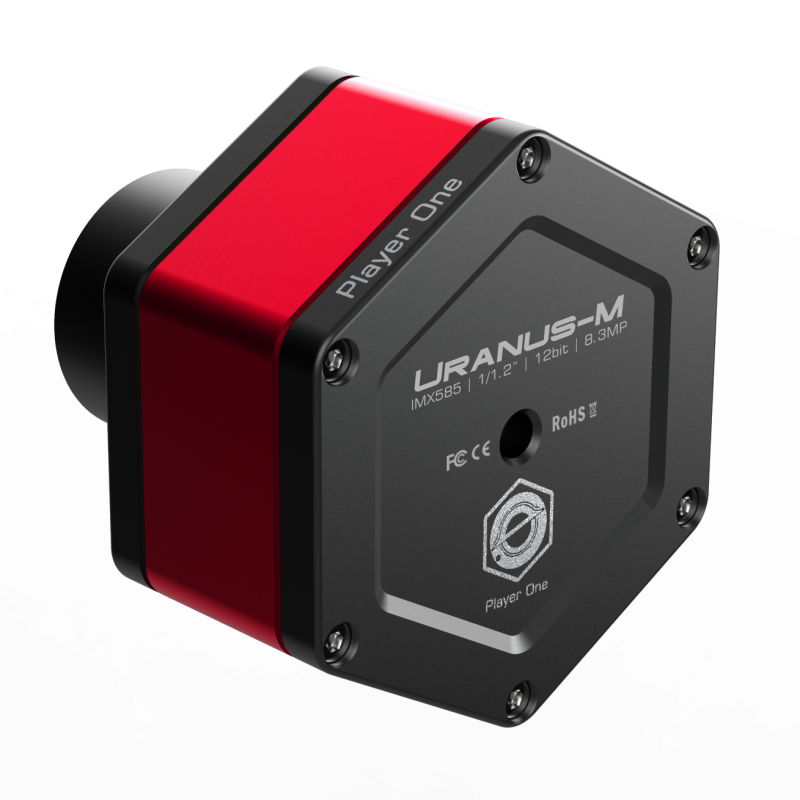

Uranus-M USB3.0 MonoCamera (IMX585)

Uranus-M is (IMX585) camera developed by Player One Astronomy, which adopts the newest Sony IMX585 1/1.2” format color sensor. The 2.9um pixel size accommodates a well depth of 38.8Ke with a total of 8.3MP  (the resolution is 3856*2180), and the diagonal is 12.85mm.

STARVIS 2 Technology

Uranus-C (IMX585) and Mars-C II (IMX662) based on Sony newest STARVIS 2 technology, it is back-illuminated pixel technology used in CMOS image sensors.

Format

Uranus-C (IMX585) has 1/1.2″ format, this size is quite big for imaging.

Full Well

Uranus-C (IMX585) has 38.8Ke full well, it’s almost 3 times than IMX485 (13Ke).

Non-Amp-Glow

Biggest supprise of Uranus-C (IMX585) camera is, its dark frame is totally “dark”, whatever we strength the curve, there is no AMP glow at all!

Cutting-edge Design

The planetary cameras developed by Player One Astronomy uses a scientific and technological regular hexagon to construct the main body line, supplemented by round chamfers to achieve both rigidity and flexibility. The positive orange, which is imply solar, is matched with the low-key and steady black, and the super-fine frosting process on the entire surface makes the camera look luxurious and cool, highlighting the style of high-end players, can’t take my eyes off

2nd Gen – Sensor Tilt Plate

When taking deepsky objects, using sensor tilt plate can get a much smaller field curvature of the telescope.

256M DDR3 Cache

Player One Astronomy cameras are the first one who adpots the DDR3 cache in all planetary cameras in the world! It helps stabilize and secure data transmission, it effectively avoids frame dropping and greatly reduces readnoise.

With the DDR3 cache, the camera does not have high demands on computing needs any longer, it will still has excellent performance even if it is connected to a USB 2.0 port.

DPS technology

The planetary cameras from Player One Astronomy have DPS (Dead Pixel Suppression) technology. The DPS is anaylse many dark frames to find out thoes fixed abnormal pixel and record the map in camera memory. In imaging, each exposure frames, thoes position of dead pixels will be given a median value according to the active pixels around that abnormal pixel.

Passive Cooling System

Player One add a new feature called Passive Cooling System to conduct the heat from the sensor out.

Overvoltage and overcurrent protection mechanism

Player One cameras produced by the number one player ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms.

Data Port

When the camera is connected to the USB3.0 interface and full-resolution preview is used, it can reach 47 FPS in RAW8 mode (10bit ADC). When recording images, since the actual writing speed will be affected by the writing speed of the hard disk itself, when the hard disk writing speed is slow, the recording may not reach the theoretical speed. It is recommended that you use a high-quality solid state drive to record data to give full play to the performance of the camera.

Use the ST4 guide cable to connect the camera and the AUTO GUIDE port of the equatorial mount to do guiding.

Performance

HCG open at gain=210

Readout Noise

Regarding readout noise, we solemnly promise that all values are obtained from actual tests.  And for users, you could use Sharpcap 4 for testing. SC4 has a function called Sensor Analysis, provide a very simple way to test readout noise.

If you are interested in readout noise testing, you may try it yourself, which is very simple.

QE Curve

Downloads

• Sofware adn drivers downloads: http://player-one-astronomy.com/service/software/
• manual download: http://player-one-astronomy.com/service/manuals/

Caractéristics

• Sensor: New SONY IMX585 1/1.2" CMOS (Mono)
• Diagonal: 12.85mm
• Total Pixels: 8.3 Mega Pixels
• Max Resolution: 3856×2180
• Pixel Size: 2.9μm
• Chip Size: 11.2mm×6.3mm
• Frame Rate: 47FPS（10bit）
• Exposure Range: 32μs-2000s
• Shutter: Rolling Shutter
• Readout Noise: 6.5-0.7e
• QE Peak: ≈91%
• Full Well: 47K e
• ADC: 12 bit
• Data Port: USB3.0/USB2.0
• Adapter: 1.25″ / M42X0.75
• Back Focal Length: 12.5mm
• Protective Window: D32*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating
• Diameter: 66mm
• Weight: 180g
• Resolution and FPS:
  Under USB3.0 mode
  Resolution 10bit ADC
  3856×2180 46FPS
  3840×2160 47FPS
  1920×1080 187FPS
  More resolution options could be setup in capture softewares!
