Description

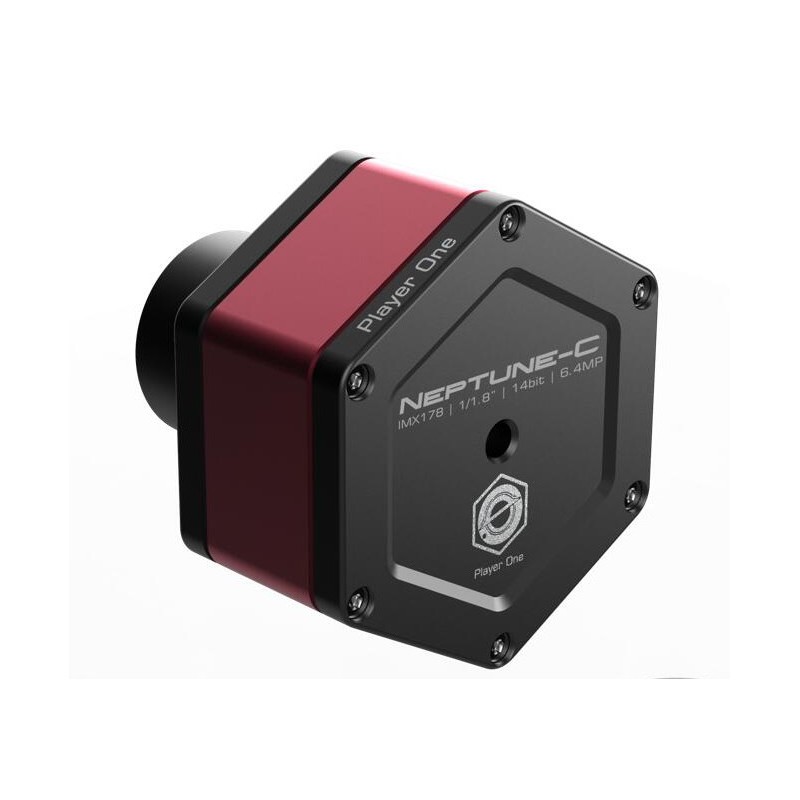

Neptune-C is a planetary camera developed by Player One Astronomy, which adopts the Sony IMX178 1/1.8” format sensor. The 2.4um pixel size accommodates a well depth of 15ke with a total of 6.4MP  (the resolution is 3096*2078), and the diagonal is 9mm.

Neptune-C (IMX178 color sensor) does not need to highlight its infrared sensitivity (compared with the IMX464 infrared sensitivity, the point of the IMX178 is very low). So, we put an UV IR-cut protective glass in Neptune-C, return you a pure true color world.

Readout Noise

Regarding readout noise, we solemnly promise that all values are obtained from actual tests.  And for users, you could use Sharpcap 4 for testing. SC4 has a function called Sensor Analysis, provide a very simple way to test readout noise.

After many rigorous readout noise tests, the Neptune-C camera can reach a low readout noise of 1.34e at a gain of 350.

If you are interested in readout noise testing, you may try it yourself, which is very simple.

HCG  Mode

The Neptune camera has a unique HCG mode, which will automatically turn on when the camera gain setting is >30. The HCG mode can greatly reduce the readout noise and retain the same high dynamic range as the low gain.

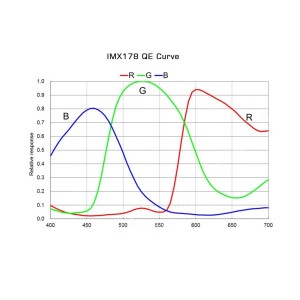

QE

2nd Gen – Sensor Tilt Plate

When taking solar photograph with prominence telescope, the Newton ring is annoying. Smoother solar image without Newton ring could be taken by adjusting the focal plate. Get a much smaller field curvature of the telescope.

256M DDR3 Cache

Player One Astronomy cameras are the first one who adpots the DDR3 cache in all planetary cameras in the world! It helps stabilize and secure data transmission, it effectively avoids frame dropping and greatly reduces readnoise.

With the DDR3 cache, the camera does not have high demands on computing needs any longer, it will still has excellent performance even if it is connected to a USB 2.0 port.

DPS technology

The planetary cameras from Player One Astronomy have DPS (Dead Pixel Suppression) technology. The DPS is anaylse many dark frames to find out thoes fixed abnormal pixel and record the map in camera memory. In imaging, each exposure frames, thoes position of dead pixels will be given a median value according to the active pixels around that abnormal pixel.

Overvoltage and overcurrent protection mechanism

Player One cameras produced by the number one player ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms.

Data Port

When the camera is connected to the USB3.0 interface and full-resolution preview is used, it can reach 93 FPS in RAW8 mode (10bit ADC). When recording images, since the actual writing speed will be affected by the writing speed of the hard disk itself, when the hard disk writing speed is slow, the recording may not reach the theoretical speed. It is recommended that you use a high-quality solid state drive to record data to give full play to the performance of the camera.

Use the ST4 guide cable to connect the camera and the AUTO GUIDE port of the equatorial mount to do guiding.

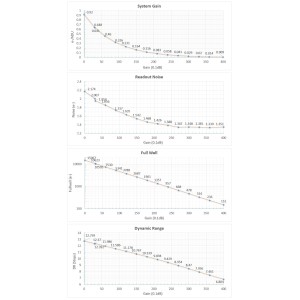

Performance

Mode HCG

La caméra Neptune dispose d'un mode HCG unique, qui s'active automatiquement lorsque le réglage du gain de la caméra est > 30. Le mode HCG peut réduire considérablement le bruit de lecture et conserver la même plage dynamique élevée que le faible gain.

Downloads

• Sofware adn drivers downloads: http://player-one-astronomy.com/service/software/
• manual download: http://player-one-astronomy.com/service/manuals/

Caractéristics

• Sensor: SONY IMX178 1/1.8" CMOS (color)
• Diagonal: 9mm
• Total Pixels: 6.4 Mega Pixels
• Max Resolution: 3096×2078
• Pixel Size: 2.4μm
• Chip Size: 7.4mm×5.0mm
• Frame Rate: 60FPS（10bit）
• Exposure Range: 32μs-2000s
• Shutter: Rolling Shutter
• Bayer: RGGB
• Readout Noise: 2.2e~1.3e
• QE Peak: ≈80%
• Full Well: 15k e
• ADC: 14 bit
• Data Port: USB3.0/USB2.0
• Adapter: 1.25″ / M42X0.75

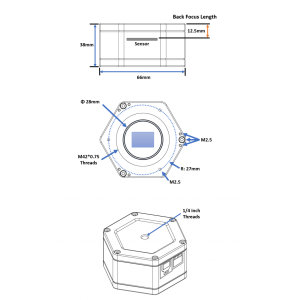

• Back Focal Length: 12.5mm
• Protective Window: D32*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating
• Diameter: 66mm
• Weight: 180g
• Resolution and FPS:
  Under USB3.0 mode
  Resolution 10bit ADC
  3096×2078 60 FPS
  More resolution options could be setup in capture softewares!
