Off axis INDIGO OAG - PEGASUS

PEG-INDIGOAG
Rating

The main advantage of having an OAG is that it uses the same optical path as your primary imaging camera. This avoids any issue with differential flexure that can occur when using a separate guide scope on top of your main telescope

€180.00
Tax included
Quantity
Last items in stock

  SECURITE

Payements 100% Sécurisé

  EXPEDITION

Expédition Express des pièces en stock

  POLITIQUE DE RETOUR

Retour sous 14 j

Description

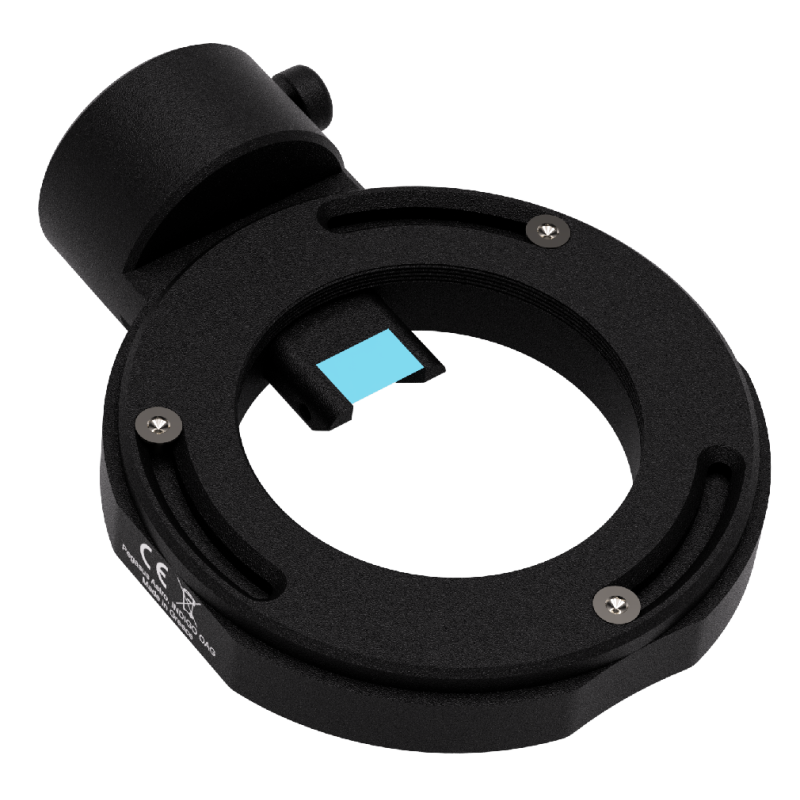

Diviseur optique INDIGO fin - PEGASUS

the INDIGO thin and solid design OAG can easily bond with our Indigo Filter Wheel. The OAG supports through holes (M2 and M3) in its body for direct connection with the latest CMOS cameras and other Filter Wheels.
The main advantage of having an OAG is that it uses the
same optical path as your primary imaging camera. This avoids any issue with differential flexure that can occur when using a separate guide scope on top of your main telescope.

  • Thin Design
    Indigo OAG has a very thin design. Its back focus is 10mm + 4mm of the telescope adapter. 14mm in total. OAG is CNC made of airplane 6061 aluminum alloy which ensures a lightweight and solid piece of equipment.

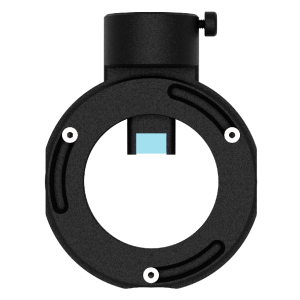

  • Adjustable prism
    The prism height can be easily adjusted to allow better illumination of the field of view of the guiding camera. If your imaging camera sensor is large, the prism can be moved (and secured with set screws) upwards to disallow blockage of the sensor’s optical path.

  • Large mirror
    A 12×8 mm fully multicoated & anti-reflection mirror offers high illumination to your guiding camera. Stars are round and bright across the OAG ‘s field.



Large Size

Indigo OAG supports the 62mm through hole pattern for direct connection with latest CMOS cameras and Filter Wheels.
Guiding camera connection is a 1.25” barrel.

Orientation of image train framing can be achieved by the 3 screws that allow telescope adapter to slide inside the slots.



Solid design for heavy load of imaging gear

Indigo Filter Whell and OAG direct mount combination

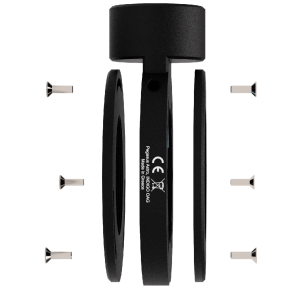

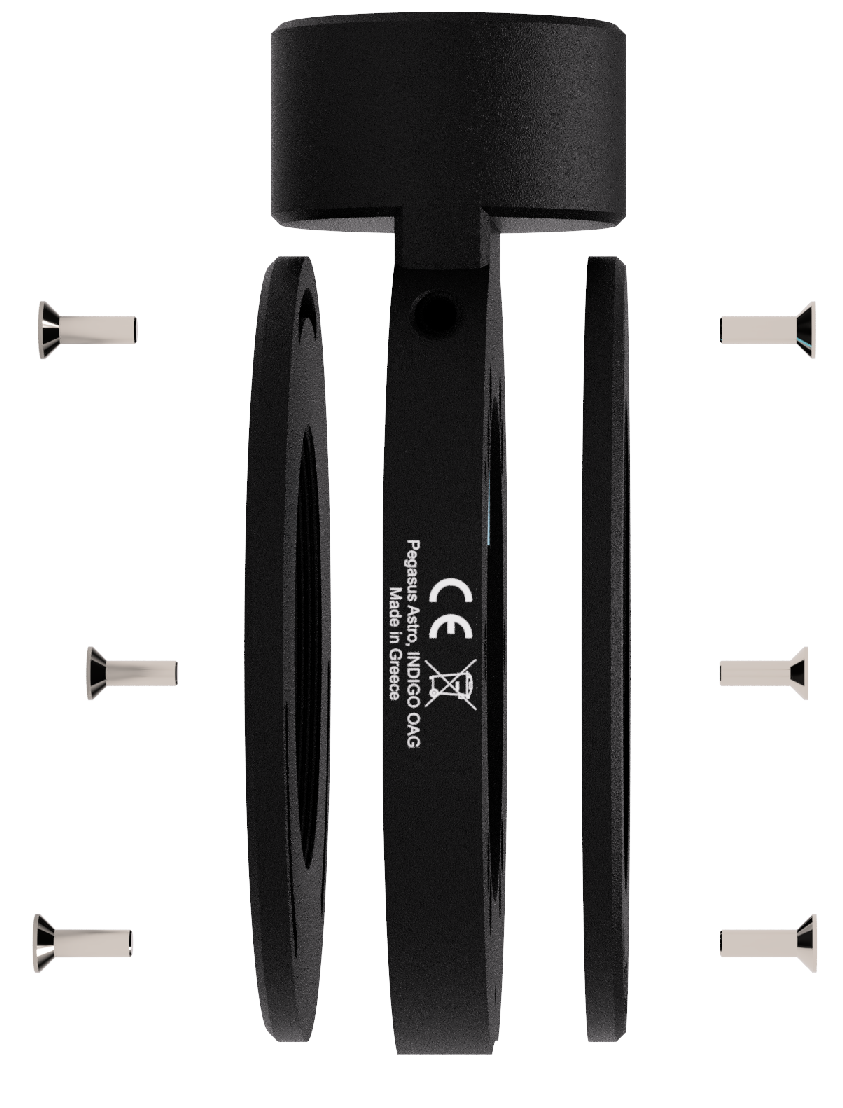

Indigo OAG + Telescope Adapters (both included)
(You can use both adapters to create a standalone OAG)

The thickness is 10mm and is design is solid enough to support heavy imaging equipment.

The clear aperture is 53.5mm.




Package Includes:

  •     a M54F threaded adapter for telescope connection. (adds a thickness of 4mm)
  •     a M48F threaded adapter for camera connection. (adds a thickness of 4mm)

Be care the thickness is 10mm only if you use the screw adaptation. If you use M54 and M42 adaptation the tickness is +2x4mm so 18mm

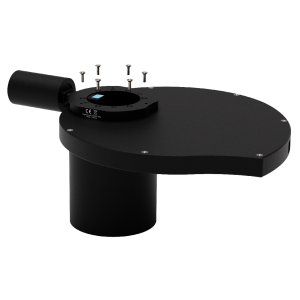

Indigo Filter Wheel Combination

The Indigo OAG can be directly mounted onto the Indigo Filter Wheel.
A combination of both products sums 19mm + 14mm (33mm total) of back-focus optical distance.

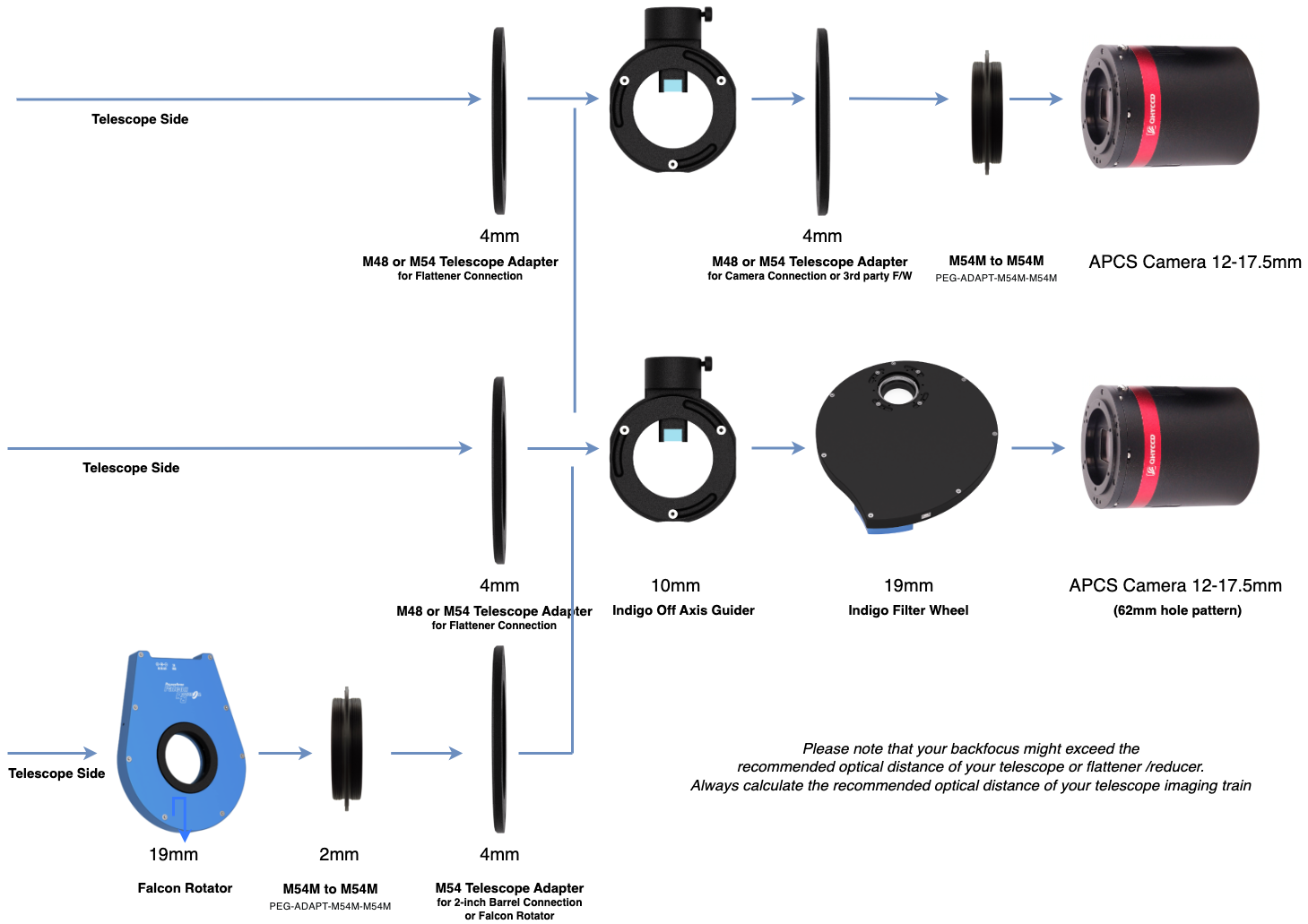

Telescope Connection

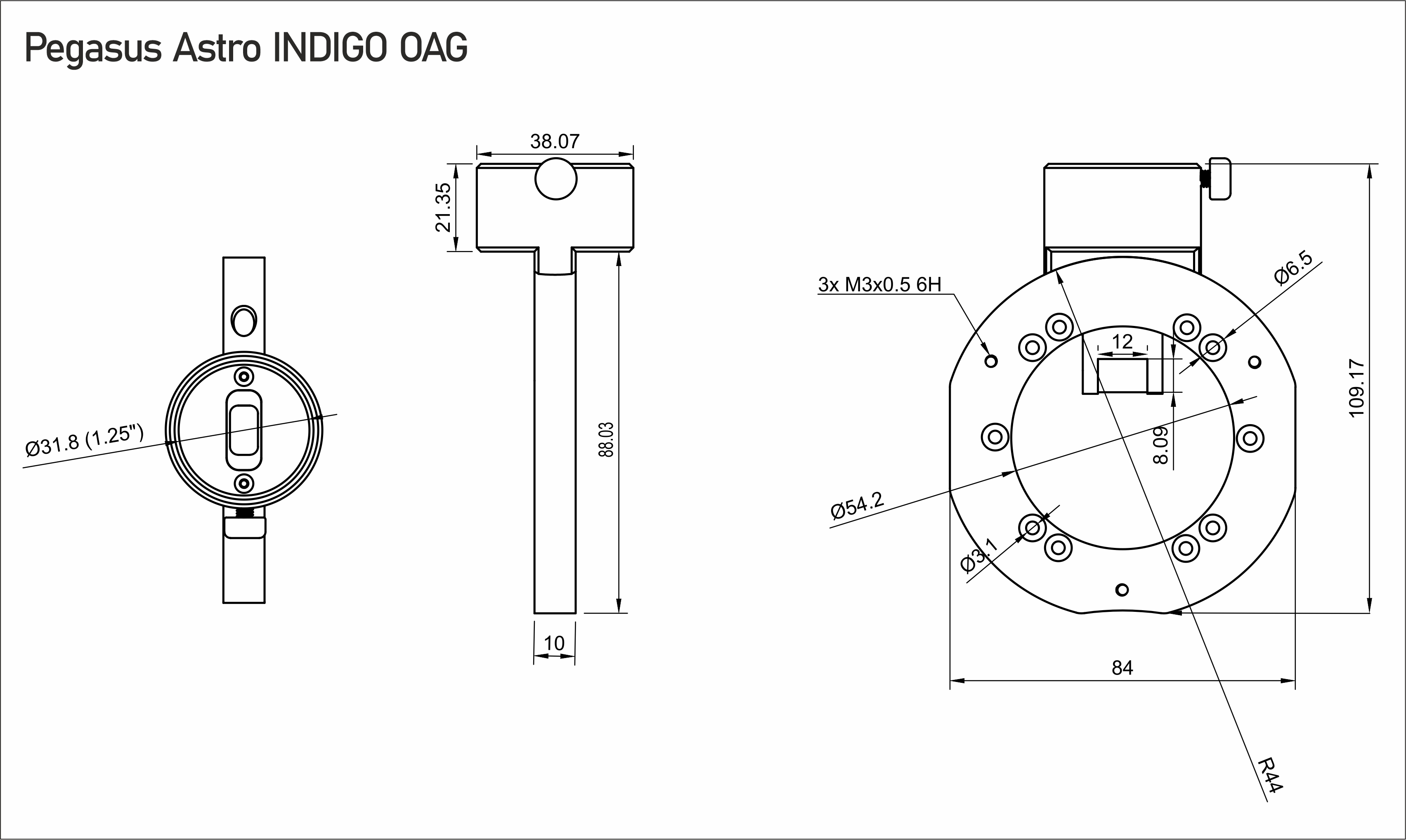

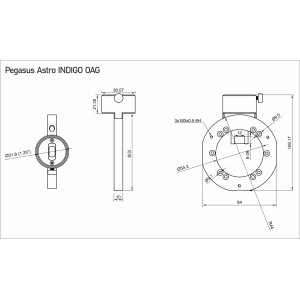

Mechanical Design


Product Details
PEG-INDIGOAG
