ZWO Off-axis Guider for Astrophotography - with extensive accessories

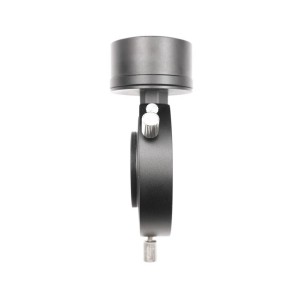

The off-axis guider from ZWO allows photography and guiding with the only one telescope. It is perfectly matched to the cameras from ZWO. With its extensive adapter package, the off-axis guider can be used with almost all telescopes and combined with all popular cameras.

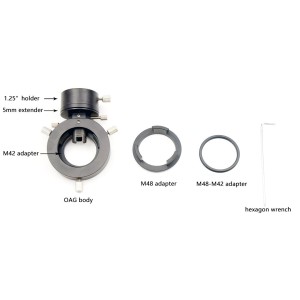

Extensive scope of supply:

• ♦ OAG body with 1.25″ holder and 5 mm extender for guiding camera (both mounted)
• ♦ T2 adapter for main imaging camera
• ♦ M48 adapter for main imaging camera
• ♦ M48-M42 adapter for telescope or flattener
• ♦ Hexagon wrench

Sample application for a working distance of exactly 55 mm and a ZWO camera with 17.5 mm working distance:

This working distance is required by most field correctors, reducers or coma correctors. The required additional parts are linked in the accessories section.

• T2 or M48 fine tuning ring with 1 mm thickness (depending on the connecting thread of the corrector)

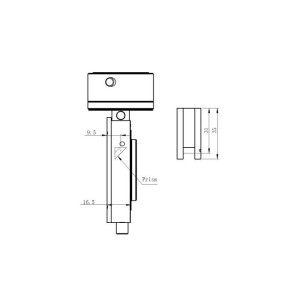

• ZWO off-axis guider with 16.5 mm thickness
• T2 extension 20 mm
• ZWO camera with 17.5 mm working distance (or a similar type)

Via flexible T2 adapter rings, you can well compensate the varying working distances of different CCD cameras.

• Via the T2 connector at the side and with the 5 mm T2 extension, you can directly focus uncooled ZWO guiding cameras, but also other autoguiders like the M-Gen. With the 1.25" adapter, you can connect autoguiders like Lodestar or the TSGM120M autoguider.
