Diviseur optique ASKAR M54

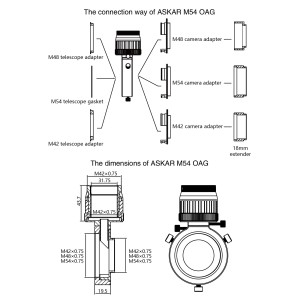

Askar M54 OAG is designed with multiple threads, like M42, M48 and M54, which can basically satisfy the needs of accessory attachment. These novice-friendly adapters are easy to switch and replace.

Askar M54 OAG functions well with a full-frame camera, better facilitating the imaging process of astrophotographers. Askar M54 OAG is CNC machined. The surface of the device is solid and smooth with delicate matte black finish.

Use for many Cameras

The total optical draw of this optical divider is 19.5mm which makes it compatible with most of the market cameras such as ZWO camera.

You just have to make sure to get the right backfocus recommended for your corrector which is generally 55mm.


The reference distance between the edge of the DO (without the adaptive ring) and the APRINCIPALE camera sensor must be 35mm to allow a good focus of the guide camera.

With this parameter you can easily calculate the thick of the intermediate ring between the camera and the OAG if the one supplied with 18mm does not allow the map of the guide camera.

This OAG will work perfectly well with the cameras in BF of 17.5 like the famous camera from Zwo

Features:

• Connections camera side:    T2, M48x0.75 and M54x0.75 male thread
• Connections telescope side:    T2, M48x0.75 and M54x0.75 female thread (the M54 female thread is in the OAG)
• Optical length of the OAG:    19.5 mm incl. connection adapter (the external thread on the camera side does not count)
• Distance prism to T2 thread of the side view:    33 mm (without 1.25" extension)
• Distance prism to camera-side external thread:    8 mm
• Prism:    10x10 mm
