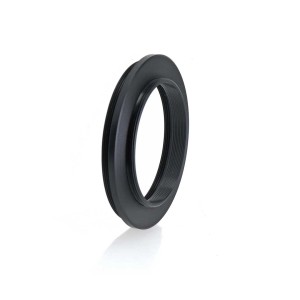

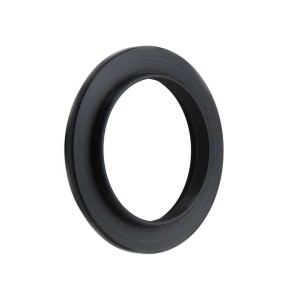

Adapter from M60 Vixen Thread to M48x0.75 Thread - TSOPTICS

Adapter from M60 Vixen Thread to 2" Filter Thread (M48x0.75) with 2" Filter Thread Connection

The adapter fits directly to the female M60x0.75 thread of Vixen correctors, field flatteners and reducers. The short adapter allows attaching any accessories to these elements and additionally offers a thread for 2" filters. With only 3 mm length, the adapter leaves sufficient space for additional parts like off-axis guiders or filer drawers.

Fokal adapter for telescopes with female M60x 0.75 thread on the focuser:

The adaptor is suitable for all telescopes which have a focuser with a female M60 thread. This adapter provides an extremely short adaption to the male M48 thread and at the same time a connection thread for 2" filters. Thus the adapter allows reaching the focus with cameras when using 2" nebula filters at the same time.

The adaptor is suitable for the following telescopes:

• Celestron Newtonians with 2" rack and pinion focuser
• Vixen Newtonian telescopes with rack and pinion focuser and refractor telescopes
• Synta (Skywatcher) Newtonians and Dobsonians with rack and pinion focuser
• GSO & ICS Newtonians and Dobsonians with rack and pinion focuser

Tehcnical data:

• Thread at the telescope side:    M60x0.75 male thread - length 4 mm
• Filter threads at the telescope side:    M48x0.75 (2" filter thread) female
• Thread at the camera side:    M48x0.75 male thread - length 3 mm
• Optical path (without the two male threads):    3 mm
