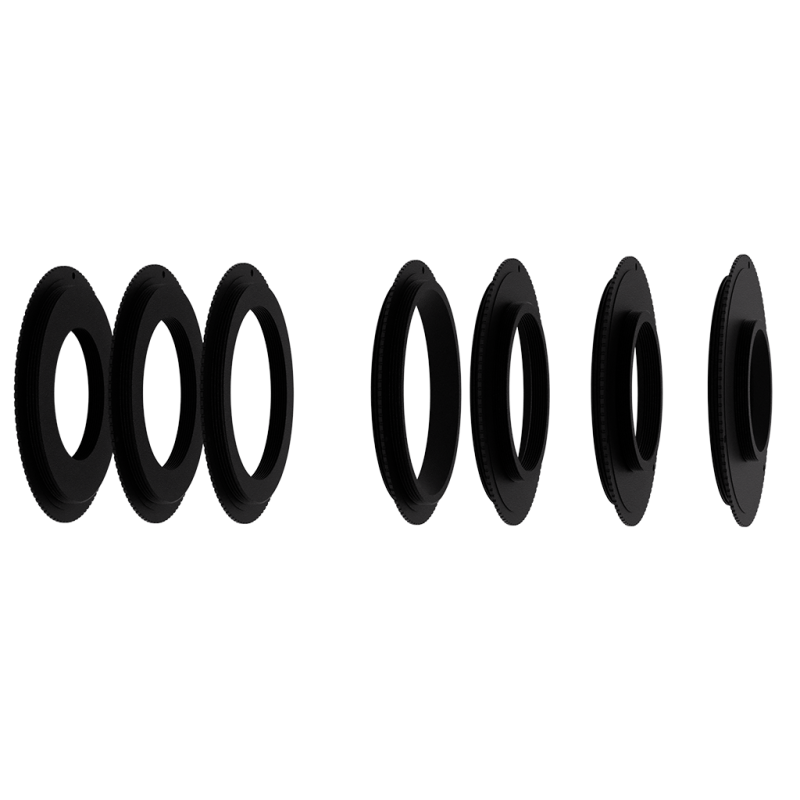

Adapter ring for Falcon Rotator M68 V2 PEGASUS
These adapter rings were created specifically for the PEGASUS field rotator and allow multiple adaptations of the rotator to your equipment.
Typically the Rotator comes with 1 thread M68 x1 FEMALE on each side
It can be directly attached to an M68 male thread on the telescope side for example without other additional rings. If you do not have an M68 male thread on the telescope side, you will need one of the following gauges offered:
Female adapters
- M68M to M42F (ADAPT-M68MM42F)
- M68M to M48F (ADAPT-M68MM48F)
- M68M to M54F (ADAPT-M68MM54F)
On the Camera side which are generally equipped with a female thread, you will need one of these rings in order to be able to adapt it to the Falcon rotator:
Male adapters
- M68M to M68M (ADAPT-M68MM68M)
- M68M to M54M (ADAPT-M68MM54M)
- M68M to M48M (ADAPT-M68MM48M)
- M68M to M42M (ADAPT-M68MM42M)
Features
- Retrofocus thickness: 1.40 mm
- Thread length: 4.0 mm
- M48 adapters have an internal M42 thread.
- M54 adapters have an internal M48 thread
