SQA106 adapter ring to replace the rotator

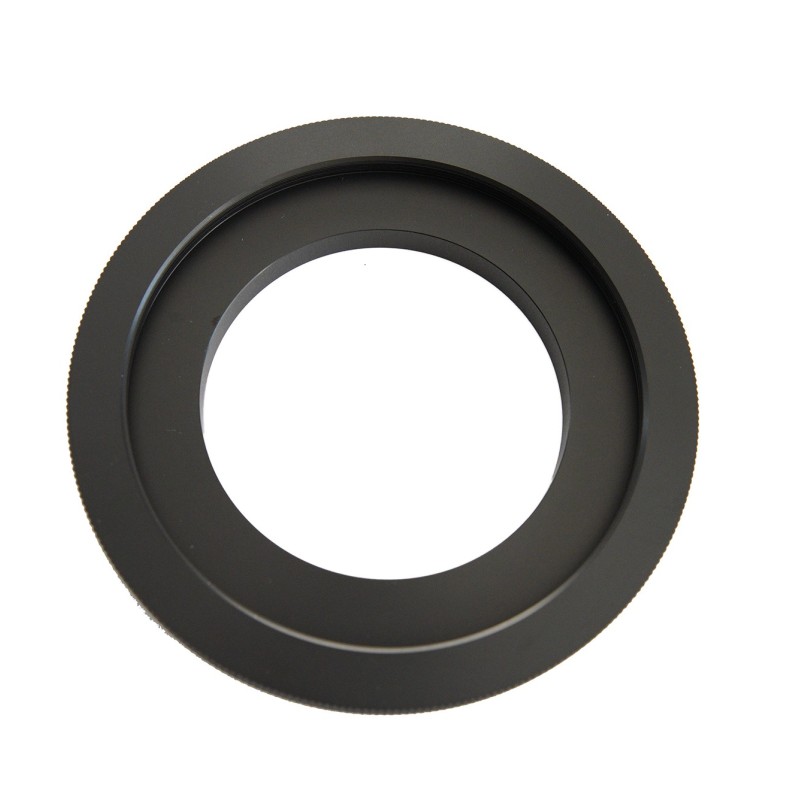

This adapter ring has been specially designed to replace the original rotator of the SQA106 or any other telescope with a M87x1 male thread.

The focal point being at 78mm PO retracted is limited to add an electric field rotator on this telescope, being able to remove the manual rotator and replace it with this ring will save you 20mm of focal length and thus use if you wish a rotator like the PEGASUS Falcon Rotator

Installation

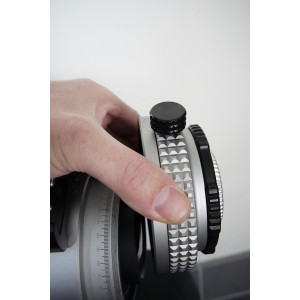

• Tighten the rotator brake and disassemble the rotator by turning it counterclockwise

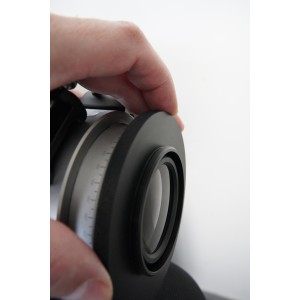

• Pull out the eyepiece holder about 1cm and install the ring directly on the M87x1 thread of the Tube

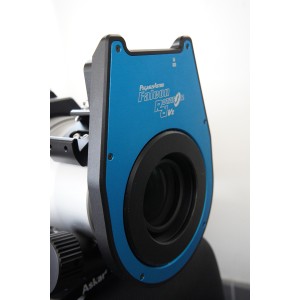

• Then install the Rotator or other equipment on the M68x1 thread available on the ring



Features

• Dedicated manufacturing
• material: aluminum
• Tube side thread: M87x1
• Camera side thread: M68x1

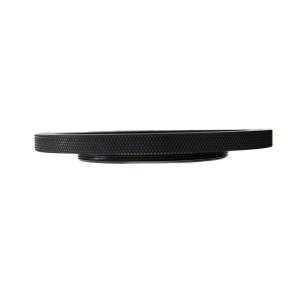

• Ring thickness: 7mm
• Effective backfocus gain on the SQA 106: 20mm
