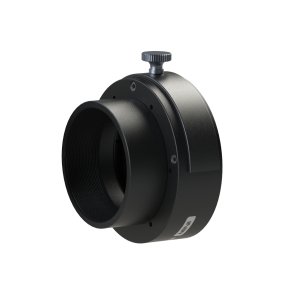

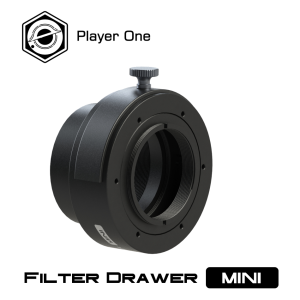

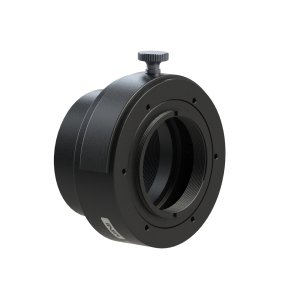

Filter Drawer MINI
- Support model: Ares series.
- Filter size: 2″ filter is required
- Material:Aluminum 6061-T6
- Extention Length: 21mm
![](https://www.univers-astro.fr/img/cms/PLAYERONE/FD mini/Filter-Drawer-MINI-2-600x550.png)

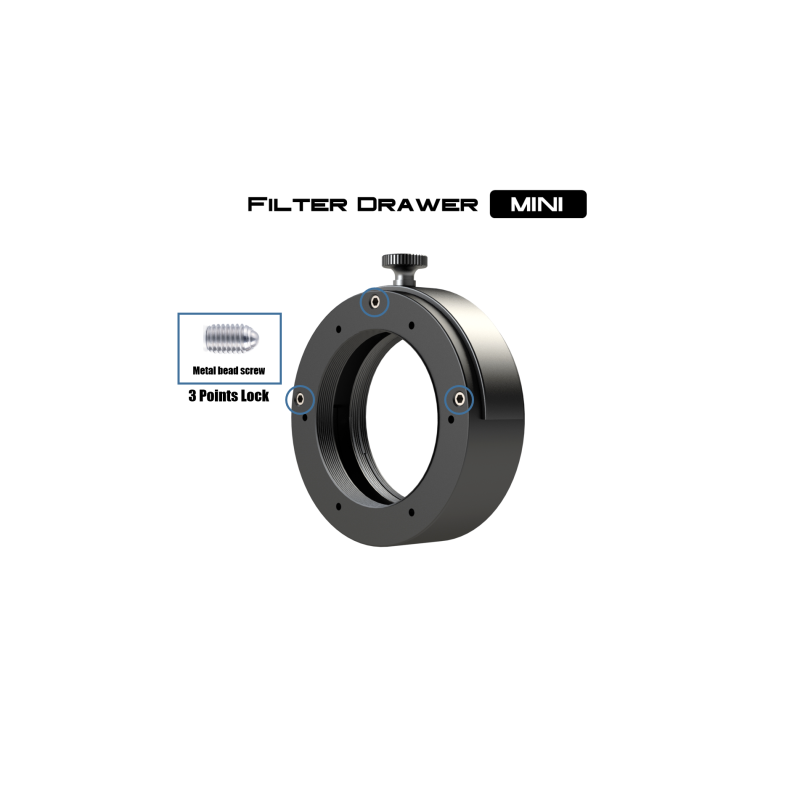

Stable Lock
Filter Drawer MINI using metal bead screw to lock the drawer, 3 point lock can make sure the drawer is very stable in imaging.
![](https://www.univers-astro.fr/img/cms/PLAYERONE/FD mini/Filter-Drawer-MINI-3.png)
Support filters
We know most users choose 2″ filter for drawers, even the camera only has 1″ format. But 2″ filters usually more expensive. So we provide 2 different drawer, 2″ and 1.25″.
2″ drawer has M48*0.75 female thread, can hold a 2″ filter in it.
1.25″ drawer has M28.5*0.6 female thread, can hold a 1.25″ filter in it.
![](https://www.univers-astro.fr/img/cms/PLAYERONE/FD mini/Filter-Drawer-body.png)
![](https://www.univers-astro.fr/img/cms/PLAYERONE/FD mini/1-25Filter-Drawer-body.png)
Setup with M2.5 screws
On both side of the Filter Drawer MINI, has 6 M2.5 screws holes. Screw holes on telescope side used to connect the FHD-OAG MINI, Screw holes on camera side used to connect cooled cameras.
![](https://www.univers-astro.fr/img/cms/PLAYERONE/FD mini/Filter-Drawer-MINI-front-and-back.png)
Setup with threads
Filter Drawer MINI also support threads connection, this will extend the using range of it.
![](https://www.univers-astro.fr/img/cms/PLAYERONE/FD mini/Filter-Drawer-MINI-full-setup2.png)
Package List
![](https://www.univers-astro.fr/img/cms/PLAYERONE/FD mini/Filter-Drawer-MINI-package3.png)
