Filter Drawer MAX

• Support model: Poseidon series, Zeus series, Artemis series.
• Filter size: 2″ filter is required
• Material：Aluminum 6061-T6
• Extention Length: 21mm

Stable Lock

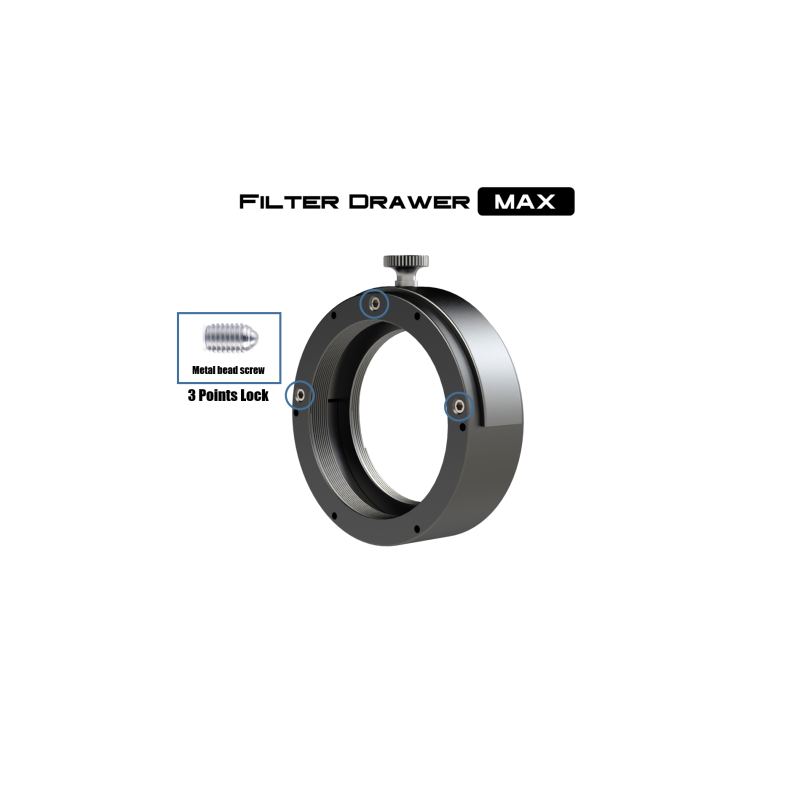

Filter Drawer MAX using metal bead screw to lock the drawer, 3 point lock can make sure the drawer is very stable in imaging.

Support filters

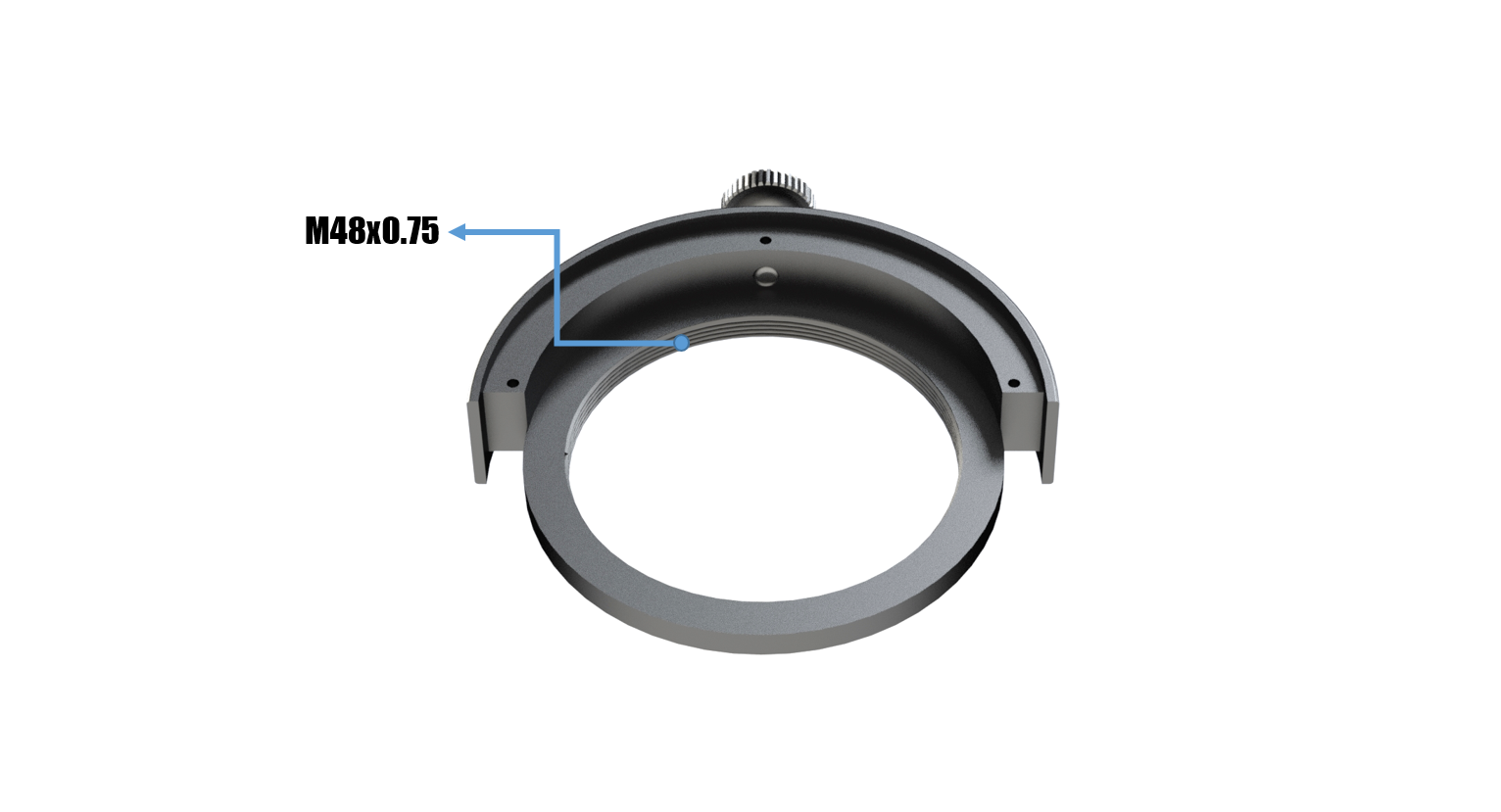

Drawer itself has M48*0.75 female thread, can hold a 2″ filter in it.

Setup with M2.5 screws

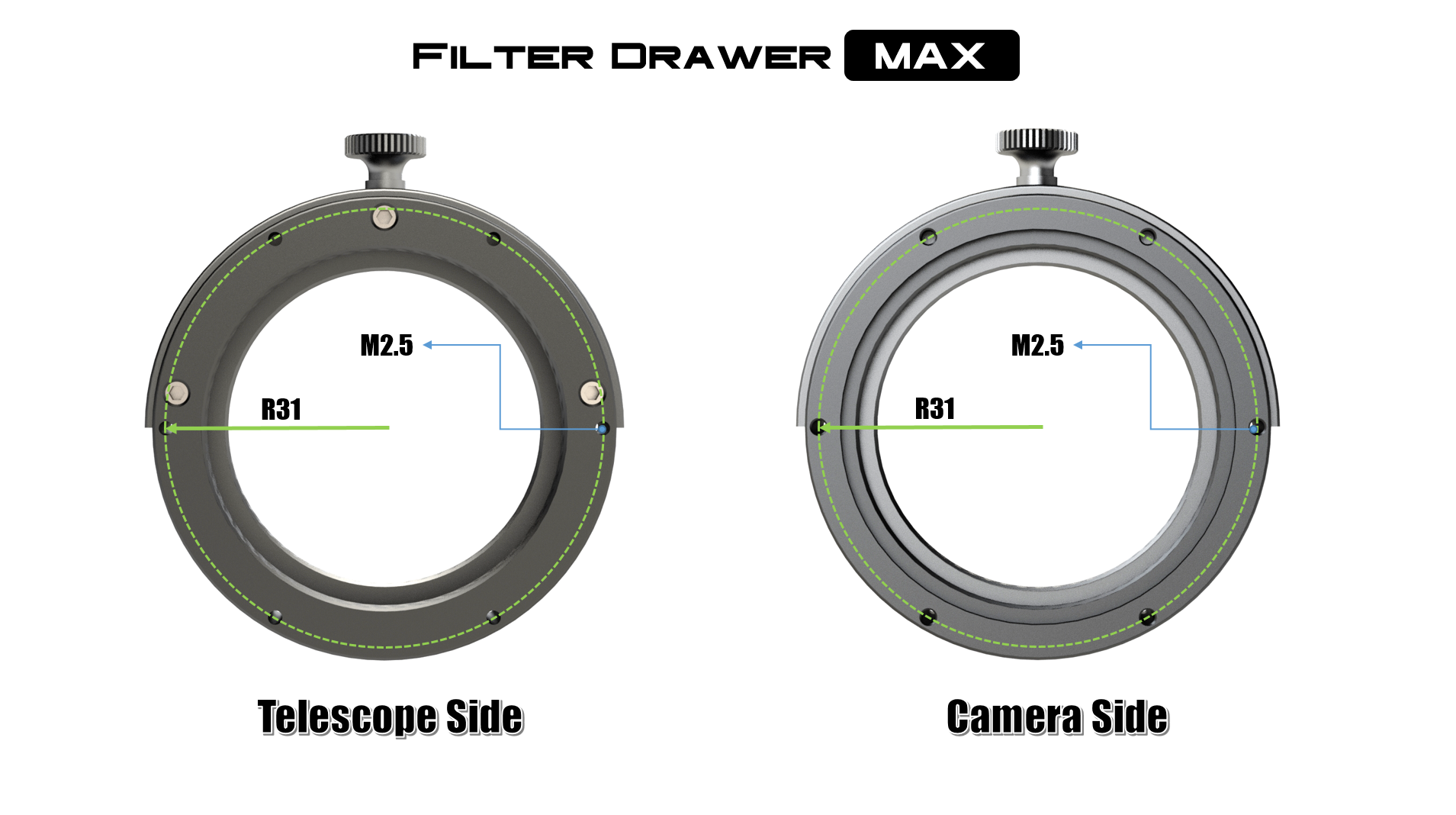

On both side of the Filter Drawer MAX, has 6 M2.5 screws holes. Screw holes on telescope side used to connect the FHD-OAG MAX, Screw holes on camera side used to connect cooled cameras.

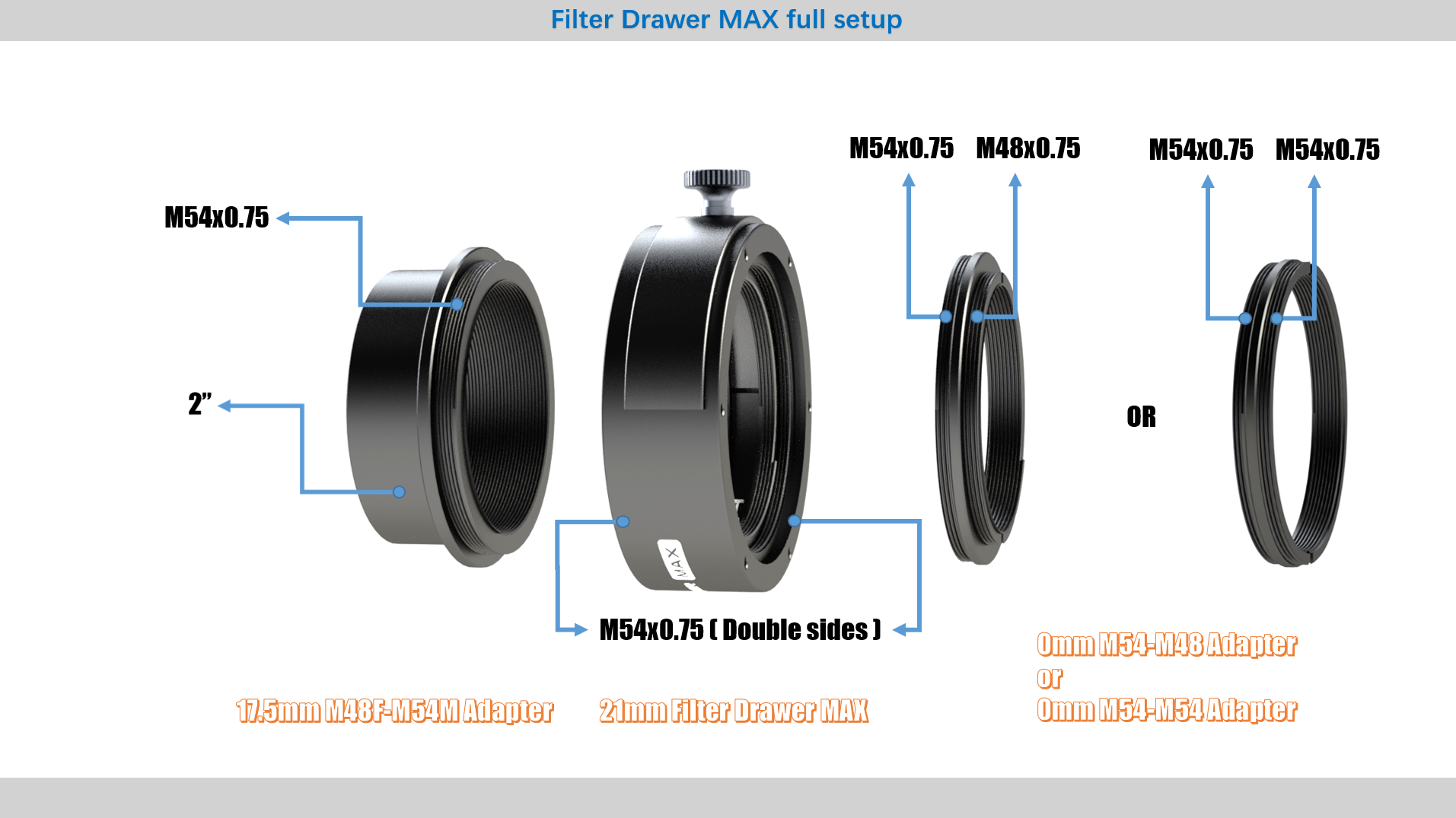

Setup with threads

Filter Drawer MAX also support threads connection, this will extend the using range of it.

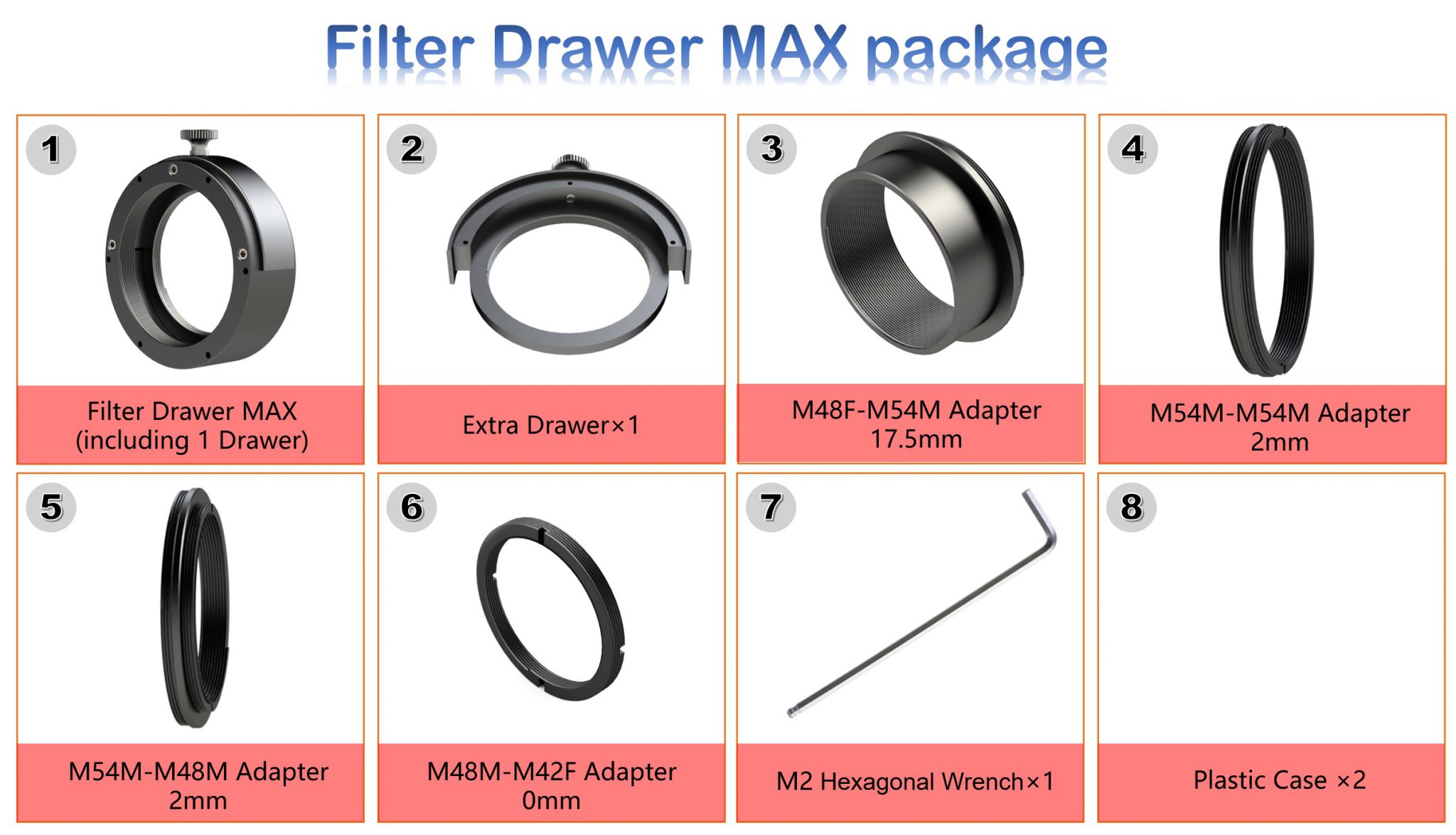

Package List
