Product description:

• Phoenix Filter Wheel 8x1"25mm
• Support model: Ares and overs possibles with M42 thread.
• Body Threads: M42*0.75 on both sides
• Filter size: 1.25 filter is required，Filter frame ≤ 8.5mm, threads thickness ≤ 2.5mm
• Material：Aluminum 6061-T6
• Optical Length: 20mm

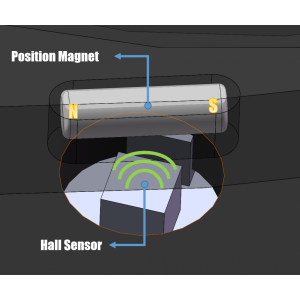

Hall Sensing Technology

Traditional infrared sensor scanning positioning hole to locate position, this way positioning accuracy depends on the size of the positioning hole, the smaller the hole, the higher the accuracy, but the diameter of the hole must have at least 1mm diameter, otherwise it is difficult to manufacture.  But if use magnet on filter plate, Hall sensor will detect the center of the magnet, the positioning accuracy is better than infrared sensor.

Hybrid stepping motor

This super thin hybrid stepping motor can provide very smooth rotation, almost no vibration when change the filter position.

Type-C data port

Using USB Type-C port can reduce the thickness of red piece.

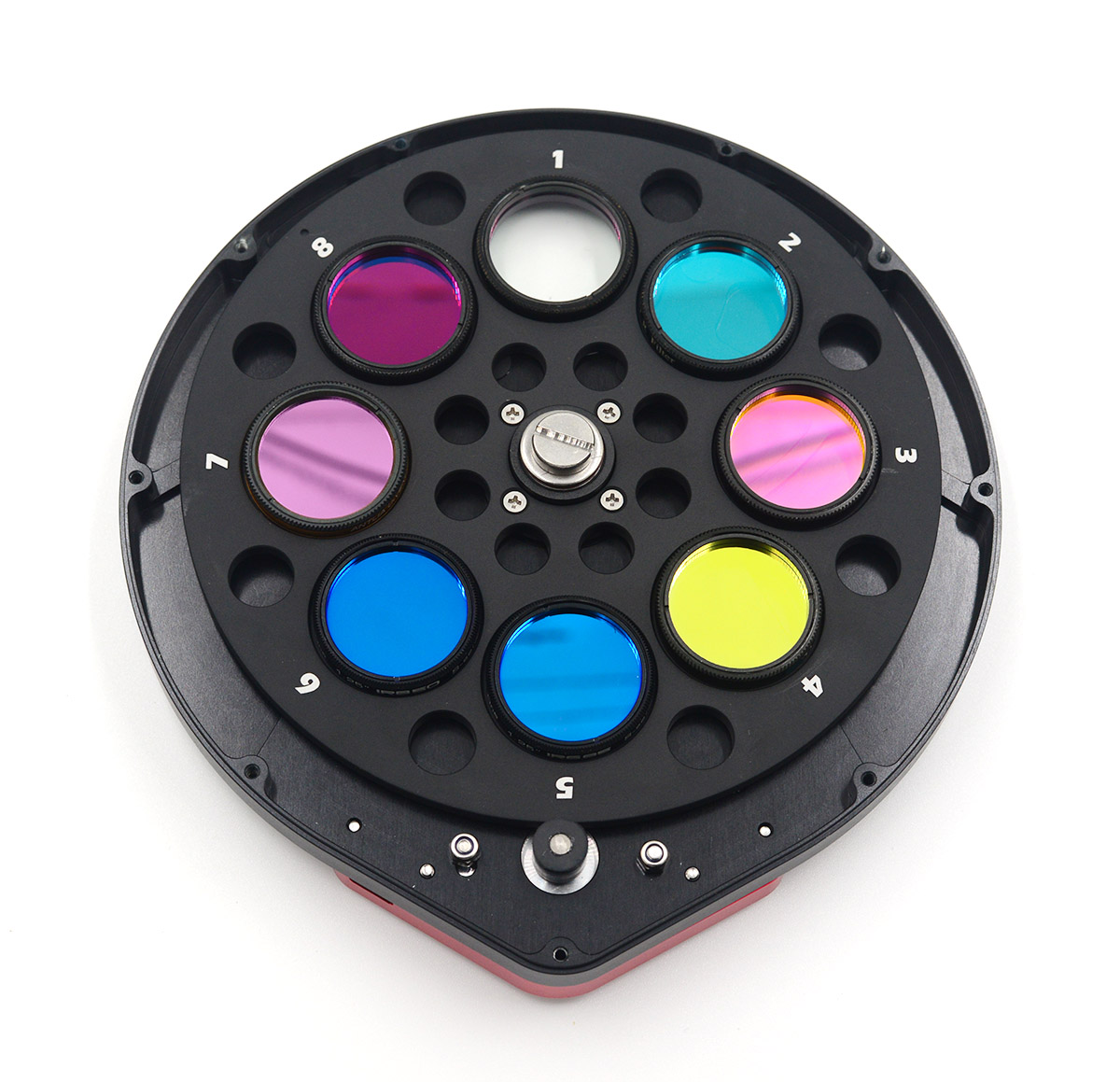

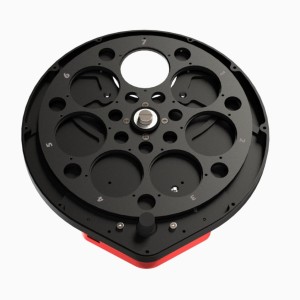

Support filters

Filter Positions of Phoenix Wheel 8x1"25mm support 1"25 mounted filters.

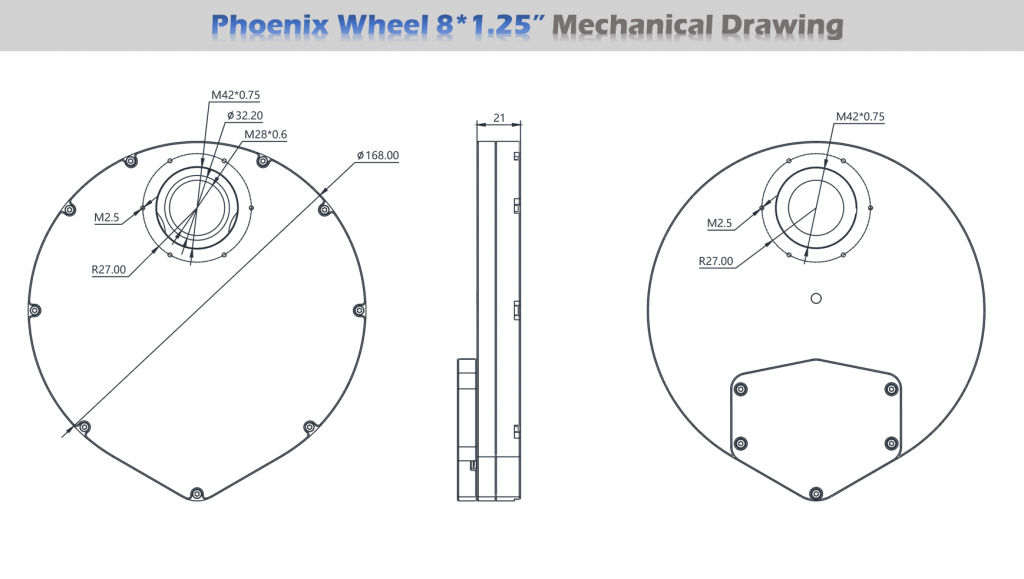

Mechanical Drawing

Package List
