Flattener for APO 103 ASKAR

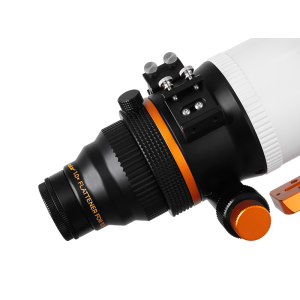

The 1x flattener does not change the telescope's focal ratio itself. After connecting with the Askar 103APO, it still maintained a focal length of 6.8. The flattener corrects field curvature and coma, resulting in flatter field edges and finer star points.

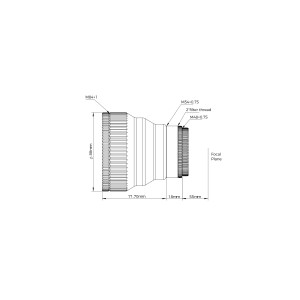

The 1.0x flattener adopts a triplet design and supports a 44mm full-frame image circle. The overall weight is 0.58kg. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. At the camera end, it is equipped with M54*0.75 and M48*0.75 two sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.

Features

• After attaching to 103APO Focal length: 700.4mm
• After attaching to 103APO Focal ratio: f/6.8
• Lens Number: Triplet design
• Back Focus: 55mm（from the base of M48 male thread）
• Weight: 0.58kg
• Rear-end thread type: M54×0.75 M54×0.75-M48×0.75(M48×0.75 filter thread inside)
