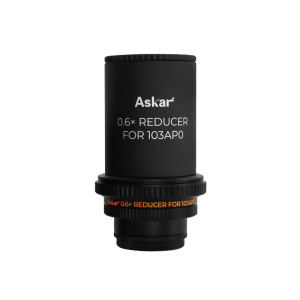

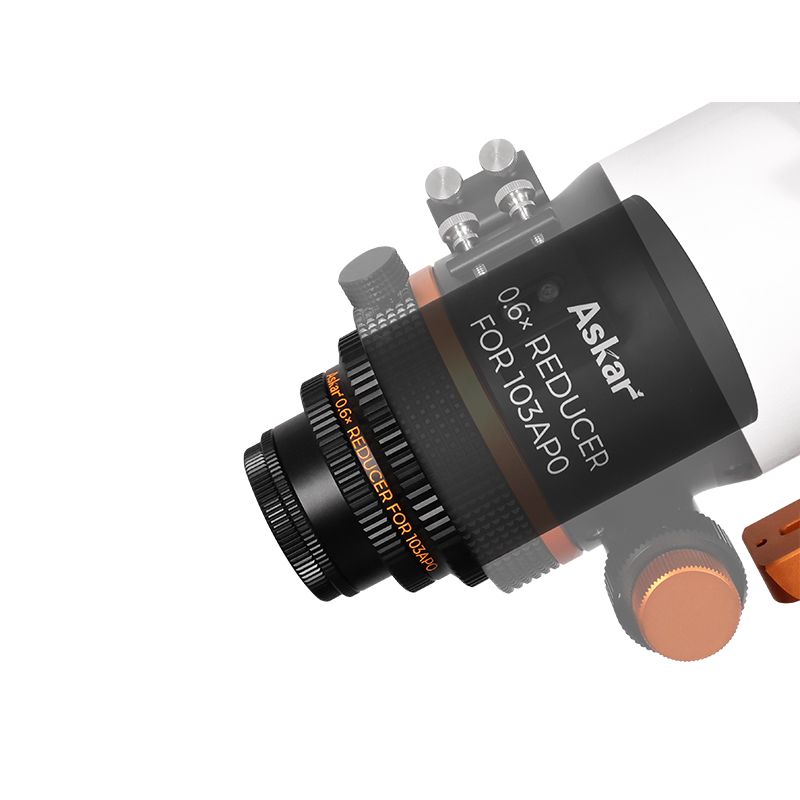

Reducer 0.6x for 103APO ASKAR

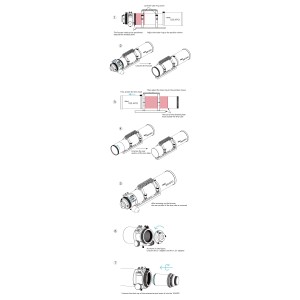

The 0.6x reducer can bring the Askar 103APO's focal ratio down to F4 while also providing field flattening. Askar 103APO adopts a detachable tube design, where the rear part of the tube can be removed when using the 0.6x reducer, allowing the telescope to have the necessary length to achieve an F4 focal ratio.

The 0.6x reducer adopts a quadruplet design that also supports a 44mm full-frame image circle. The overall weight is 0.98kg. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. At the camera end, we have equipped three sizes of adapter， M68*1, M54*0.75, and M48*0.75 for easy subsequent connection and use. At the same time, the built-in M48*0.75 2-inch filter thread can be used to install filters directly. The overall CNC machined, both end threaded metal caps prevent ash when not in use.

After several customer feedback, the Backfocus seems to be around 58.5 mm

Features

• Type: Focal reducer
• Suitable for telescopes: Askar 103APO
• Shortening factor:    0.6x
• Optical design: four lenses
• Connection to telescope: M84*1
• Filter thread telescope side: M48x0,75 inside
• camera side threads: M68x1 male, M54x0,75 male, M48x0,75 male

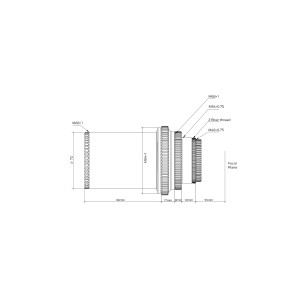

• Backfocus: 55 mm from flange of M48 thread
