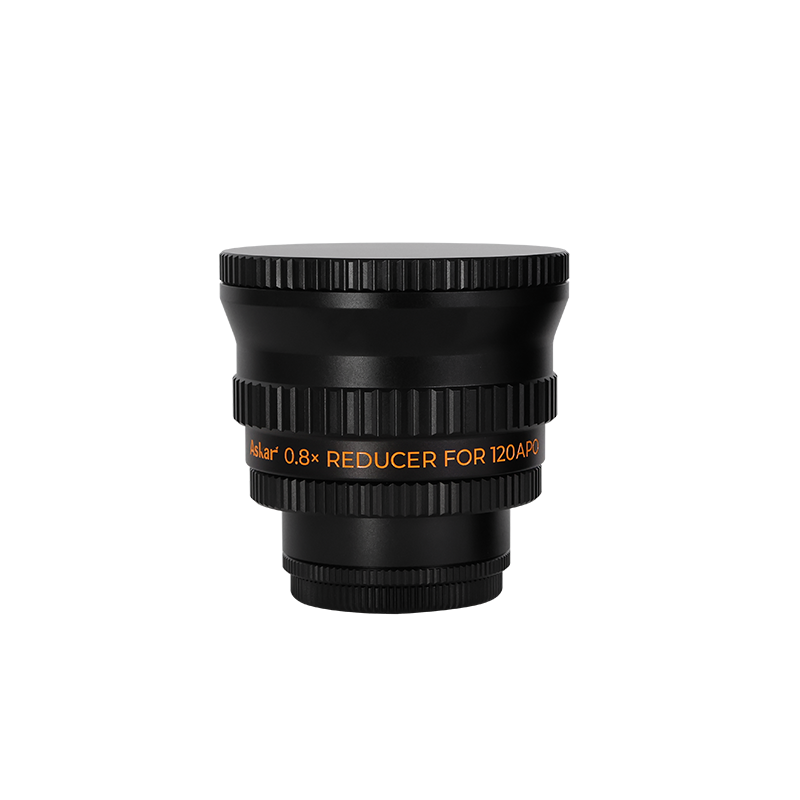

Reducer 0.8x for 120APO - ASKAR

Reducer 0.8x for 120 APO ASKAR

The 0.8x reducer can bring Askar 120APO's focal ratio down to F5.6. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for capturing large areas of nebulae, star clusters, and faint, fast-moving celestial objects.

The 0.8x reducer adopts a triplet design and supports a 44mm full-frame image circle. The overall weight is 0.75kg. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. we have equipped three sizes of adapter， M68*1, M54*0.75, and M48*0.75 for easy subsequent connection and use. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.

Features

• （After attaching）120APO Focal length: 672mm
• （After attaching）120APO Focal ratio: f/5.6
• Lens Number: Triplet design
• Back Focus: 55mm（from the base of M48 male thread）
• Weight: 0.75kg
• Rear-end thread type
  M68*1
  M54×0.75
  M54×0.75-M48×0.75 (M48×0.75 filter thread inside)
