APO 108mm F5.6 FRA600 with integrated corrector - ASKAR

FRA600
Rating

Askar FRA600 108mm F/5.6 Refractor - 108mm FRA600 F/ 5.6 Quintuplet Refractor with a corrected field of 66mm with integrated corrector

€2,780.00
Tax included
Quantity
Nous contacter pour les délais

100% secure payments
  SECURITE

Payements 100% Sécurisé

  EXPEDITION

Expédition Express des pièces en stock

  POLITIQUE DE RETOUR

Retour sous 14 j

Description

In short:

  •     Apeture 108mm
  •     Focal length 600mm / focal ratio f/5.6
  •     5-element quintuple design with in-tube corrector
  •     Two ED glasses in the lens for very good correction of chromatic aberration
  •     66mm image circle with full illumination and correction
  •     140mm working distance for visual observation or focal length reduction
  •     Stable 4" dual-speed RAP focuser with 360° rotation
  •     2" and 1.25" receptacles as well as M68x1 external thread for screw adaptations
  •     Losmandy style flexible dovetail bar
  •     Classic seeker support

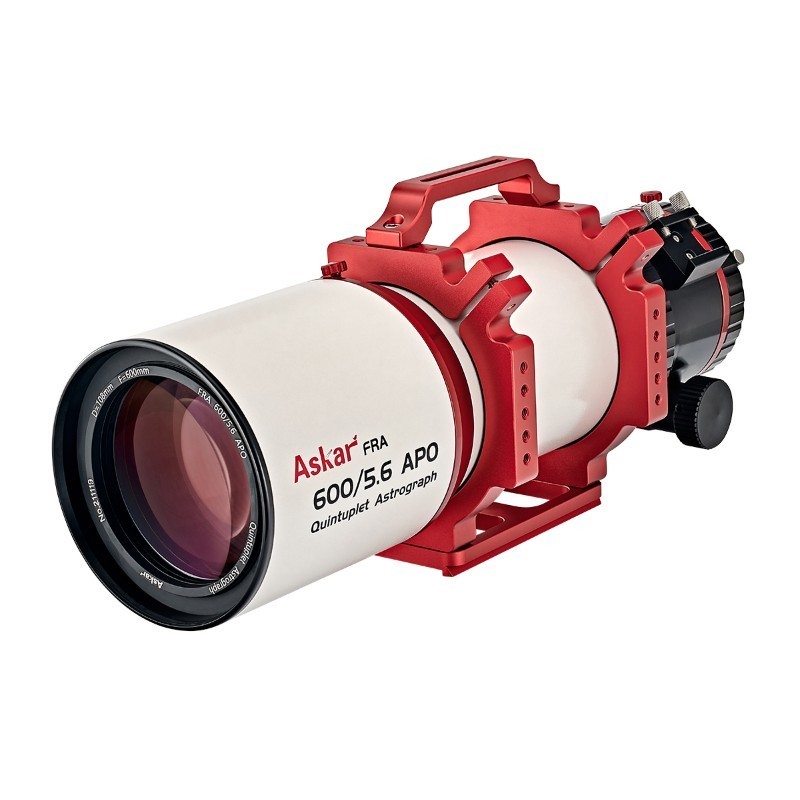

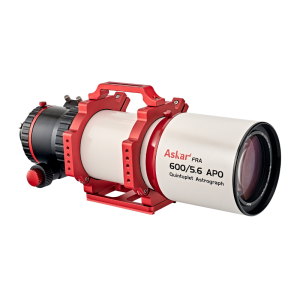

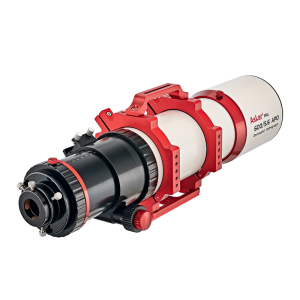

Askar FRA600 Refractor


Askar has a new refractor, currently the largest in the Quintuplet series, the FRA600 108mm.
This instrument is largely dedicated to demanding astrophotographers.

Thanks to this air-spaced quintuplet and its integrated corrector, the field is corrected up to 66mm diagonal without adding any other equipment. As soon as you have the focus, the correction is optimal!!

This new APO guarantees exceptional chromatic correction thanks to Sharpstar's precise and manic construction.
The image is unaffected by chromatic aberration and remains high contrast.

The FRA600 refractor is Askar's flagship product, you won't find this product with the same features at a lower price!




Improved mechanics

The highly precise mechanics guarantee universal application in all astronomical fields and extreme job satisfaction.

In addition to the improved optics, the FRA600 also offers improved mechanics that leave nothing to chance, in this way the performance of this APO can also be fully exploited in astrophotography.

The aPO Qintuplet FPL53 with multi-coated air-spaced treatment on each optical surface, makes the optical quality very good with no chromatic aberration even at maximum magnification.

The lens of this apochromat is composed of an air-spaced triplet composed by elements supplied by the famous Ohara (made in Japan), the central element consists of glass and Ohara Superapo-Fpl53.

The state-of-the-art optical train enables precise correction across the entire wavelength range.

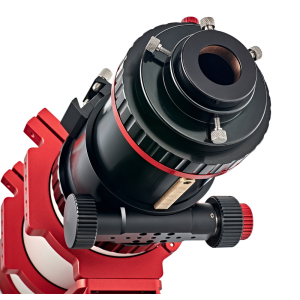

4" Rotating R&P Eyepiece Holder

This refractor uses a completely new range of 4" focuser, with integrated 360° rotator to always keep the target in the correct position, thanks to the rack & pinion system, the focuser can withstand very heavy loads without problems of twist.

The 1:10 gear ratio mechanism provides precise focus and is ideal for astrophotography.

Features

  • Type: Flatfield APO refractor
  • Aperture: 108 mm
  • Focal length: 600 mm
  • Focal ratio: f/5.6
  • Optical design: 5-element design according to Petzval
  • Objective: 3-element objective with 2 special glasses
  • Corrector: 2-element corrector built into the tube
  • Illuminated image field:    66 mm diameter with full correction
  • Focuser: 4" focuser with reduction
  • Focuser travel: 80 mm
  • Thread in the draw tube: M100x1 inside
  • Rotation adapter: M100x1 male to M90x1 mal, 25 mm opt. path
  • 2" adapter: M90x1 female to 2" female, 27 mm opt. path
  • 1.25" adapter: 2" male to 1.25" female, 10 mm opt. path
  • Dew shield: Slide in for transport
  • Diameter dew shield: 148 mm
  • Tube diameter: 125 mm
  • Length OTA: 50 cm min.
  • Length OTA: 56.5 cm with the dew shield extended
  • Weight OTA: 7.9 kg including tube rings, dovetail bar and handle
  • Threaded holes in the tube rings (left, right, top, bottom): 1/4 "UNC in the middle, 2x M6 with 25 mm spacing, 2x M6 with 50 mm spacing
  • Thread on the tube: M121x1 female thread - this is where the focuser and corrector are connected

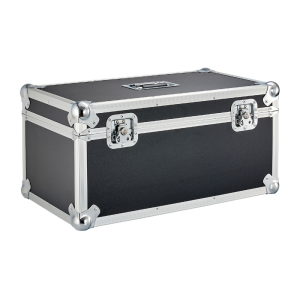

  • Dimensions transport case: 58.5 x 33 x 29 cm (LxWxH)
  • Weight transport case: 5 kg
Product Details
FRA600

Data sheet

Type
Lunette
Traitement
APOchromatique
Ouverture
108mm
Focale
600mm
Rapport F/D
5.6
Porte Oculaire
Crémaillière
Connexion
M90x1, M54x0.75, M48x0.75
Monture
Sans
Oculaires inlus
aucun
Chercheur
non
Taille (cm)
56.5 avec pare buée
Poids (Kg)
7.9
Autres
Diamètre du pare Buée: 148mm
Pleine illumination
66mm
