Filter Wheel 8x 1.25"/31mm - ZWO

ZWO Motorised Filter Wheel for cameras from ASI and others

The motorised filter wheel is compact and with less than 400 grams (without filters) aalso lightweight. USB2.0 is sufficient for powering; the max power consumption is around 150 mA. so you can connect the USB cable directly to the USB2.0 hub of the cooled ZWO ASI cameras.

The distance between the filters and sensor is only 10 mm, so there will be no vignetting with fast telescopes, even if using an ASI1600. If you use unmounted 31 mm filters, you can even use lenses up to f/2 without annoying vignetting.

The ZWO EFW is perfect for creating L-RGB and false-colour images with ASI cameras

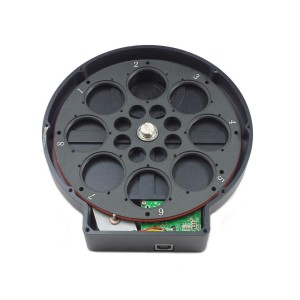

The filter wheel offers eight positions for filters - ideal for L-RGB filters + three nebula filters.

The distance between the filter and sensor is around 10 mm, so there will be no vignetting with fast telescopes, even if using an ASI1600. If you use unmounted 31 mm filters, you can even use lenses up to f/2 without vignetting.

The ZWO EFW-Mini is perfect for creating L-RGB images with ASI cameras

The filter wheel offers five positions for filtes - ideal for L-RGB filters + a clear opening.

Features

• Weighting only approx. 400 grams
• High-class CNC design with aluminium housing
• Stepper motor for the filter exchange - from NPM

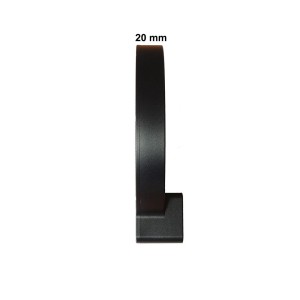

• Only 20 mm optical path from T2 to T2 female
• Powered via USB - low power consumption

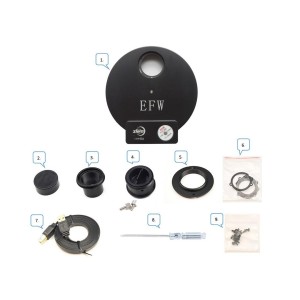

• Completely equipped with 1.25" and T2 connectors, USB cable
• Connection telescope side: T2 female and 1,25"
• Connection camera side: T2 female / male and 1,25"
• Suitable for 8x mounted 1.25" filters or 8x unmounted 31 mm filters
