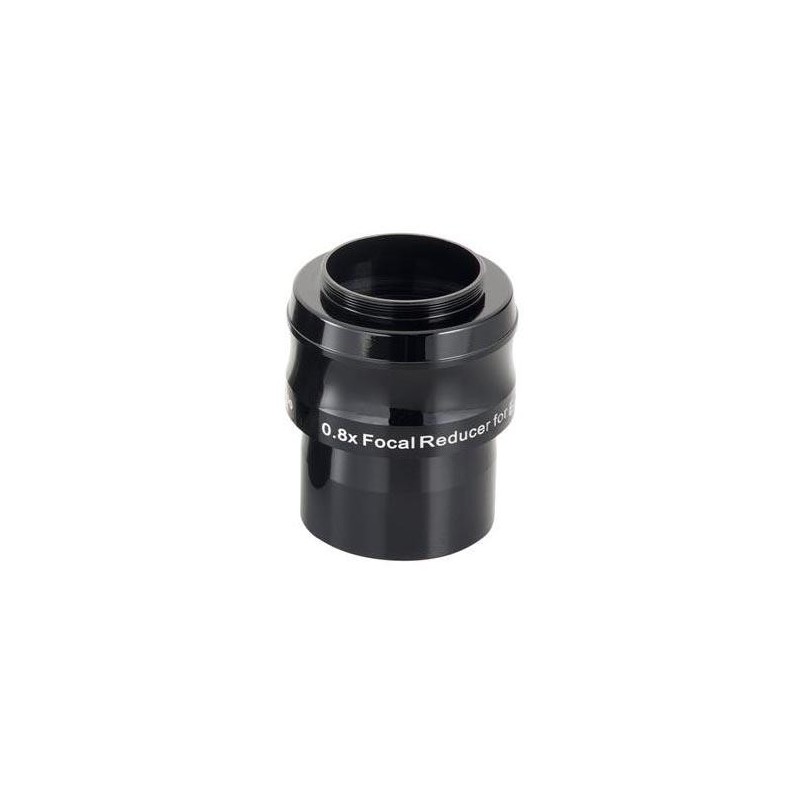

TS 0.8x corrector for astrophotography through refractor telescopes

The corrector provides good illumination and correction for sensors with APS-C format or for astro cameras up to approx. 30 mm sensor diameter. It is suitable for all refractor telescopes and offers a simple 2" barrel with filter thread.

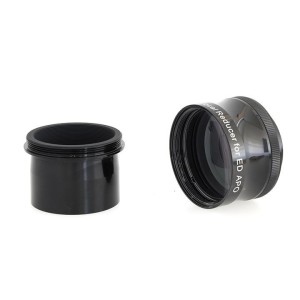

Amateur astronomers who prefer a screw connection can unscrew the 2" barrel and make an individual adaptation via the M54x1 female thread on the corrector. We offer an adaptation to the connection thread of your focuser via our special adapters.

The corrector offers the T2 (M42x0.75) male thread on the camera side and the standard working distance of 55 mm. All common mirrorless system cameras, DSLR and astro cameras offer an adaptation to T2 with this working distance. For an individual adaptation, the M55x0.75 male thread is still available on the corrector. To do this, simply unscrew the T2 adapter. The working distance then increases from 55 mm to 62.5 mm.

Features

• Design: Corrector with focal length reduction
• Lenses: 2-element design
• Coating: Multi-coating on each lens surface
• Connection telescope side: 2" barrel and M54x1 female thread
• Connection camera side: T2 (M42x0.75) male thread and M55x0.75 male thread
• Working distance: 55 mm from T2 thread and 62.5 mm from M55 thread
• Weight: 170 gram
