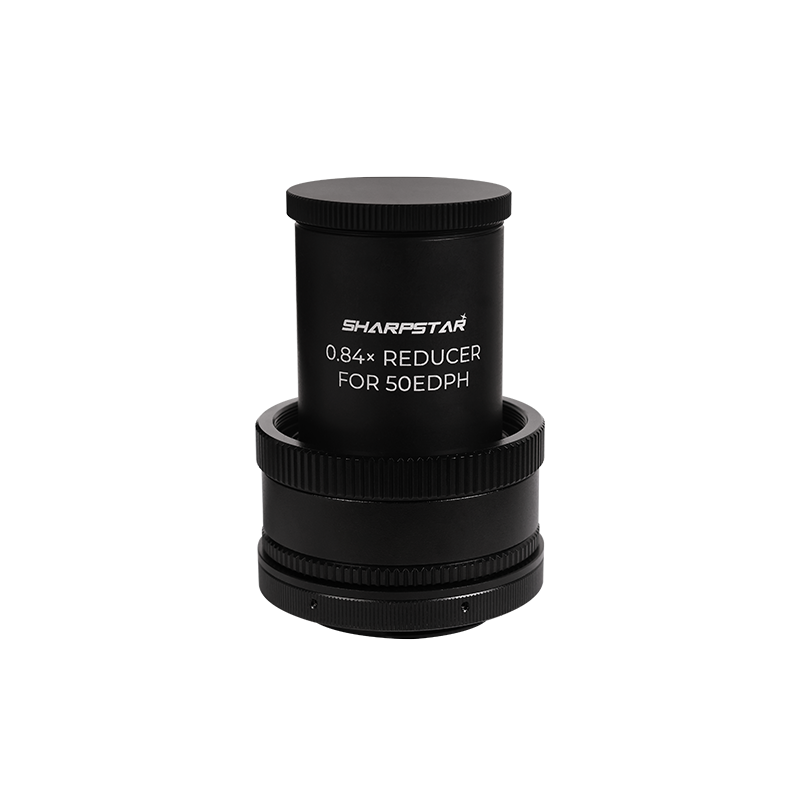

50EDPH 0.84x Reducer - Sharpstar

The 0.84x reducer can bring Sharpstar 50EDPH's focal ratio down to F4.6. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for capturing large areas of nebulae, star clusters, and faint, fast-moving celestial objects.

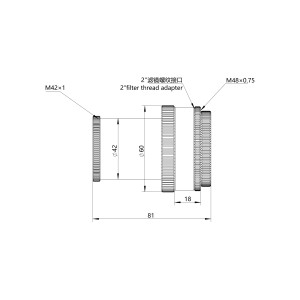

The 0.84x reducer adopts a quadruplet design and supports an APS-C frame. The overall weight is 0.24kg. The back focus from the M48 thread is a standard 55mm. The front thread is M42*1 and the camera end thread is M48*0.75. At the same time, it has a built-in 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.



Specifications

• Reducer: 0.84x
• 50EDPH Focal length with reducer: 230mm
• 50EDPH Focal ratio with reducer: f/4.6
• Lens Number: Quadruplet design
• Back Focus: 55mm（from the base of M48 male thread）
• Weight: 0.24kg
• Rear-end thread type: M48×0.75 (M48×0.75 filter thread inside)
