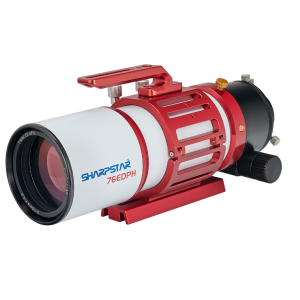

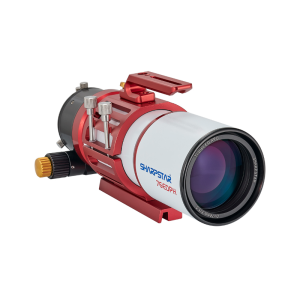

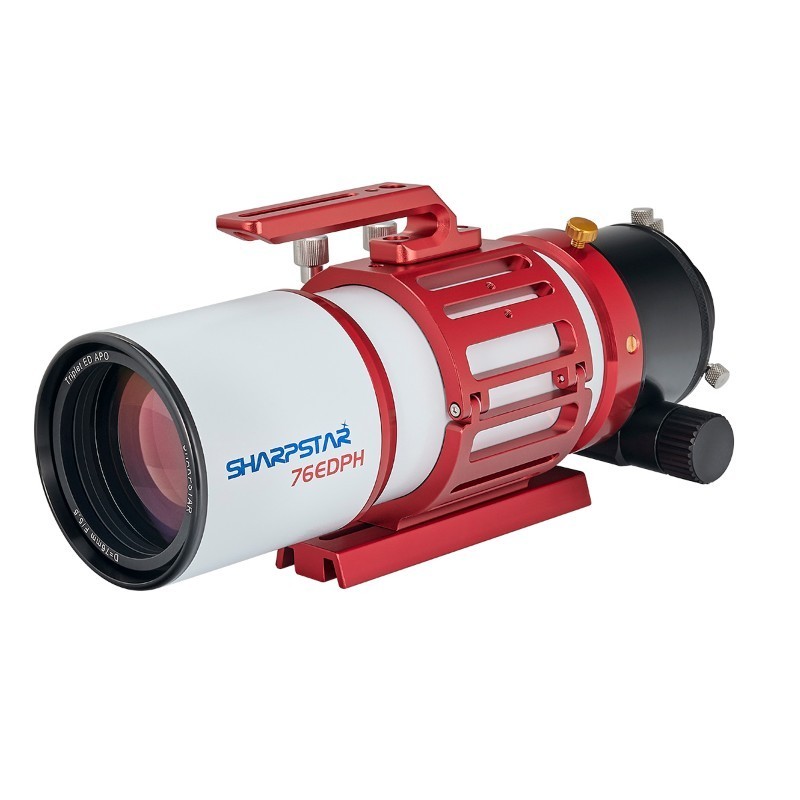

TS 76edph apochromat with flat field FPL53 with 6 elements
The 76edph ts-optics is intended for astrophotographers and who also like to observe through a high-end APO. This refractor is equipped with lenses with FLP53 treatment which guarantee excellent chromatic correction. The 3 -element corrector has been specially developed for this APO and produces an image field 44 mm in diameter, ideal for full -format sensors. The rapid FOCAL FOCAL ratio allows short exposure times. The 76edph is a powerful and portable travel apo for astrophotography and observation.
Connection of cameras to APO:
Simply screw the corrector in the PO 2.5 ". A M48X0.75 thread is available on the Camera's Camera side. The backfocus for a perfect correction is 55mm This is ideal for all Astro cameras and DSLR / SLR cameras. corresponding T rings can be found in the accessories section. The corrector also has a 2 "filter thread in front of the camera support.
Photo or frame tripod
The CNC ring has a bar at the tail of Vixen style. You can fix this telescope as much on mounts for vixen dock or on photo tripod or star adventurer thanks to its threaded holes.
A multi -use transport handle.
The handle does not only facilitate mounting on photo tripods, but also serves as the basis for other equipment. The handle has an oblong hole and a thread for 1/4 "photo tripod.
