2 Versions Possible
This mount exists in 2 versions that you can select at the top under the mini description so you will find:
- Ipolar version: This version is equipped with the famous electronic polar finder which allows ultra precise positioning. Attention this version requires a computer for the realization of the Setup.
- Classic polar finder version: This version is equipped with a traditional polar finder which allows positioning without computer assistance and will be more practical for nomadic use without a computer.Versions Possibles
|

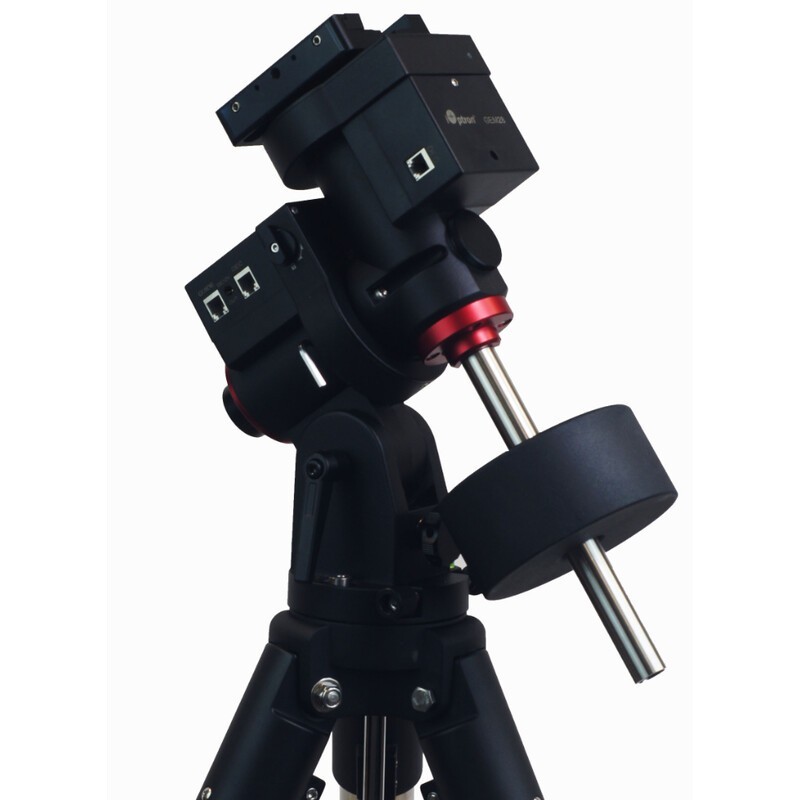

Introducing iOptron’s new compact next-generation German equatorial mounts the GEM28!
Like their predecessors, the GEM28 is designed with portability in mind, weighing in at only 10 lbs it can support up to a 28lb payload an incredible 2.8 mount weight to payload ratio. We achieved this using design methods developed to reduce mount mass in our CEM family of mounts. The German EQ versions were created to satisfy consumer that prefer a more traditional mount and to function at higher latitudes.
Building on the legacy of earlier GEM models we have added features for convenience and functionality. A positive lock gear engagement system (easy to use even when wearing gloves), Built-in Wi-Fi enabling unparallel connectivity and recordable permanent periodic error correction (PPEC) to repeat optimal PEC training sessions. Regarding functionality the GEM28 delivers precise pointing and accurate tracking. The GEM28 sets the new standard for compact German equatorial goto mounts.
The GEM28 is equipped with the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. The 212,000 object library ensures you’ll never run out of targets to see or image. The Go2Nova® Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.
Ipolar finder
The GEM28A mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. It comes with a LiteRoc heavy duty stainless steel tripod and an aluminum carrying case
Features
- German equatorial design, latitude range of 10° ~ 70°
- Ideal for both visual observation and astrophotography
- Low periodic error (< ± 10 arc seconds)
- Payload of 12.7 kg (28 lbs) with the mount-only weight of 4.5 kg (10 lbs)
- CNC machined and cast metal body
- Spring loaded gear system
- Large easy to use quick-lock gear clutches
- Stepper motor with low power consumption
- Integrated iOptron iPolarTM electronic polar scope
- Polar alignment routine for those who can’t see the Pole Star
- Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi (via hand controller)
- USB port for firmware upgrade and computer control

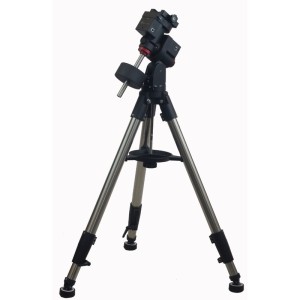

- Standard LiteRoc heavy-duty stainless steel tripod (7.5kg)
- Die-cast metal tripod spreader with accessory tray

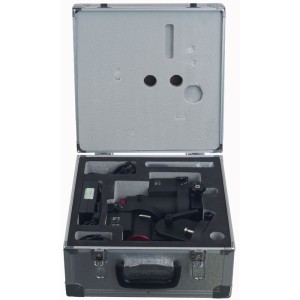

- Hard carrying case
- Optional 32-channel Global Positioning System (GPS)
Technical data:
- Mount German Equatorial Mount
- Payload * 28 lbs (12.7kg), exclude counterweight
- Mount weight 10 lbs (4.5kg)
- Payload/Mount weight 2.80
- Structure Material All metal, Casting + CNC machined
- Exterior Finish Powder coating
- Periodic error (PE) ** <±10 arcsec
- PEC Yes, Permanent PEC
- Worm period 600 sec
- Right Ascension worm wheel Φ88mm, 144 teeth aluminum
- Declination worm wheel Φ88mm, 144 teeth aluminum
- Right Ascension axis shaft Φ35mm steel
- Declination axis shaft Φ35mm steel
- Right Ascension bearing Φ55mm ball bearing
- Declination bearing Φ55mm ball bearing
- Worm gears Φ15.2mm, Brass
- Motor drive 1.8º stepper motor, 128X microdivision
- Resolution 0.17 arc seconds
- Transmission Synchronous belt
- Latitude adjustment range 10º ~ 70º
- Azimuth adjustment range ± 6º
- Polar Scope iPolar TM electronic polar scope
- Level indicator Level bubble
- Hand Controller Go2Nova® 8409 with ~212,000 objects database
- Tracking Automatic
- Slew speed 1×,2×,8×,16×,64×,128×,256×,512×,MAX(6º/sec)
- Power consumption 0.6A(Tracking), 0.9A(GOTO)
- Power requiremention 12V DC, 5A
- AC adapter 100V ~ 240V (included, for indoor use only)
- Power-down memory Yes
- Wi-Fi Built-in (via hand controller)
- Communication port Yes (Wi-Fi and USB)
- Autoguide port Yes (ST-4 compatible)
- Firmware upgrade Yes
- PC computer control Yes (ASCOM)
- Counterweight shaft Φ20X200mm (M16), Stainless Steel
- Shaft extension Φ20X120mm (M16), Stainless Steel
- Counterweight 10 lbs (4.5kg)
- Tripod LiteRoc heavy-duty stainless steel tripod (7.5kg)
- Dovetail saddle 3.8" Vixen-style, center adjustable
- Carrying case Included
- GPS Optional external 32-channel GPS
- Autoguiding Optional external iGuider 1
- Operation temperature -10ºC ~ 40ºC
- Warranty Two year limited
