Mount HEM27 Harmonic - Ioptron

Tax included
In Stock generaly under | 3 - 10 days

100% secure payments

Payements 100% Sécurisé


Expédition Express des pièces en stock


Retour sous 14 j

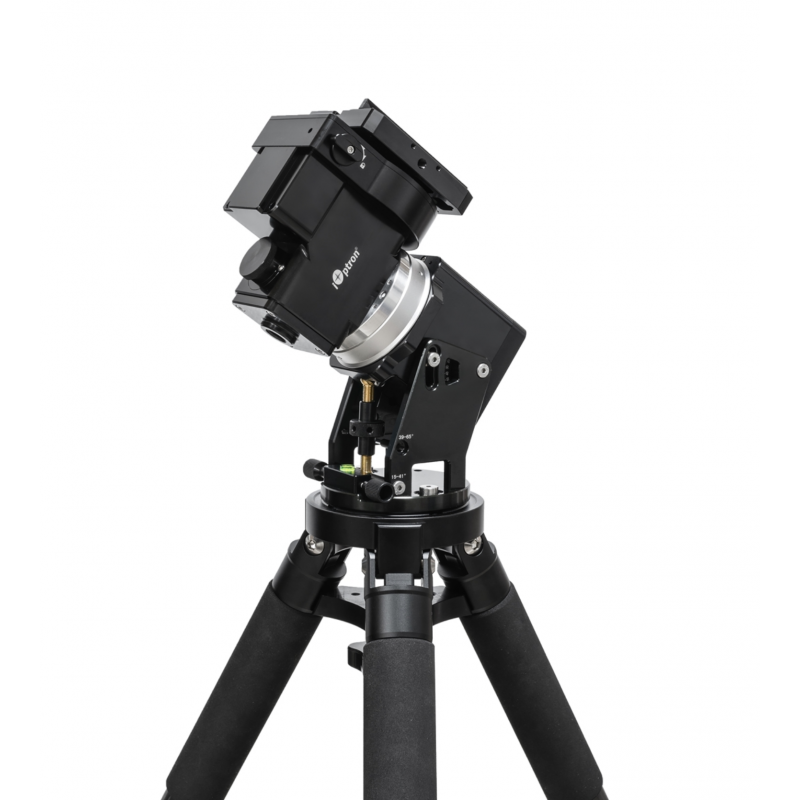

new mount Ioptron HEM27 Harmonoc

/!\ Warning come without tripod /!\

Introducing the HEM27 and the HEM27EC, iOptron’s revolutionary hybrid harmonic drive mounts. These light weight, high payload tiny titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8.15lbs with a payload capability 29.74lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi decade experience creating precision mounts, the HEM27 brings this vision to reality.

Utilizing state of the art harmonic drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).


  • Advanced harmonic drive technology
  • Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs)
  • CNC machined and cast metal body
  • Unique friction brake to safely stop movement during a planned or unplanned power interruption
  • 360 second gear period
  • Permanent periodic error correction (PPEC)
  • Go2Nova® hand controller with ~212,000 object database
  • iPolar electronic polar scope for easy and accurate polar alignment
  • Cable management system, no hanging exterior cables to moving parts
  • Dual saddle (vixen and losmandy-D styles)
  • Built in zero position search and locator
  • Power down position and location memory
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi(via hand controller)
  • USB port for firmware upgrade and computer control
  • Soft carrying case
  • Two year warranty

Technical spec

Mount Hybrid Equatorial Mount
RA Gear system StrainWave 17 (RA)/worm gear (DEC)
DEC Gear system Backlash-free worm/belt system
RA reduction ratio 120
Payload w/o CW * 29.14 lbs (13.5kg)
Mount weight 7.49lbs (3.4kg) w/o dovetail saddle, 8.15 ls (3.7kg) with dovetail saddle
Payload/Mount weight 3.65
Maximum payload with CW * 44 lbs (20kg)
Period 360 second
Drive motor Stepper motor
Structure Material All metal, CNC machined
Exterior finish Anodized black
PEC Yes, Permanent PEC
Latitude adjustment range 15º ~ 65º
Azimuth adjustment range ± 5º
Polar Scope iPolar electronic polar scope
Level indicator Level bubble
Control system GOTONOVA/Commander
Hand Controller Go2Nova® 8409 with ~212,000 objects database
Tracking Automatic
Maximum slew speed 6º/sec
Power consumption 0.5A(Tracking), 1A(GOTO)
Power requiremention 12V DC, 5A
AC adapter 100V ~ 240V (included, indoor use only)
Power off brake Electronic friction brake
Power-down memory Yes
Wi-Fi Built-in
Communication port Yes (Wi-Fi and USB)
Autoguide port Yes (ST-4 compatible)
Firmware upgrade Yes
Tripod Optional
Counterweight Shaft SS Φ20X200mm, M16 thread (Optional)
Counterweight 10 lbs (4.5kg)(Optional)
Operation temperature -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
Warranty Two year limited
